NCS 5500 Route Processor

Network equipment reference

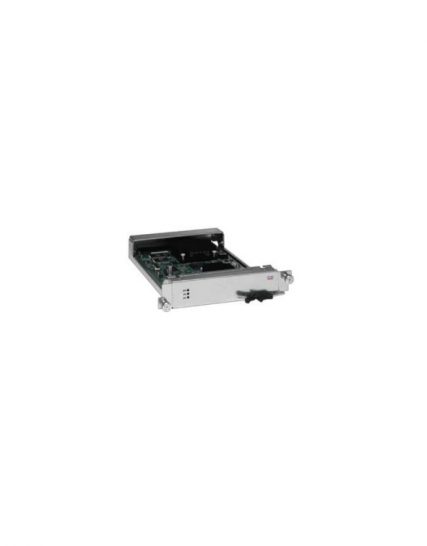

NCS 5500 Route Processor

Reference : NC55-RP

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Description du produit
NCS 5500 Route Processor
Type de device
expansion module
Form Factor
Module enfichable
Features
switching de layers 3, support RPL, support MPLS, support IPv6, support protocole VRRP (Virtual Route Redundancy Protocol), support Quality of Service (ECM), detection bidirectionnelle (BFD) ), support protocole LACP (LACP), support point de code DiffServ (DSCP), OSPF (Open Shortest Path First), iPXE, protocole de synchronisation network (NTP), Ethernet on MPLS (EoMPLS), VPN L3VPN ) support, Zero-touch provisioning (ZTP), system intermédiaire à intermédiaire (IS-IS)
performance
- Throughput : 900 Gbps
Capacity
- IPv4 routes : 254000 - IPv6 routes : 64000
Data link protocol
40 Gigabit Ethernet,100 Gigabit Ethernet
Throughput de transfert de data
100Gbits/s
Data link protocol
Gigabit Ethernet
Type de câblage
Ethernet 10Based-T, Ethernet 100Based-TX, Ethernet 1000Based-T
Ports
- 2 USB - 1 x Port Console - 1x Management Ethernet
Processor
2.2 GHz ( 6 cores )
MAC address table size
750000 entries
Ram
24 GB DRAM
Disque dur
256 GB
Flash memory
256 GB flash
Compliance standards
IEEE 802.1ae
Interfaces
- 6 x 40 Gigabit QSFP+
Compatibilité
Cisco NCS 5500
Power supply
240 Watt
Expansion slots
2 (total) / 2 (free)
system d'exploitation requis
Cisco IOS XR Software
