Juniper Networks QFX5220-32CD

Network equipment reference

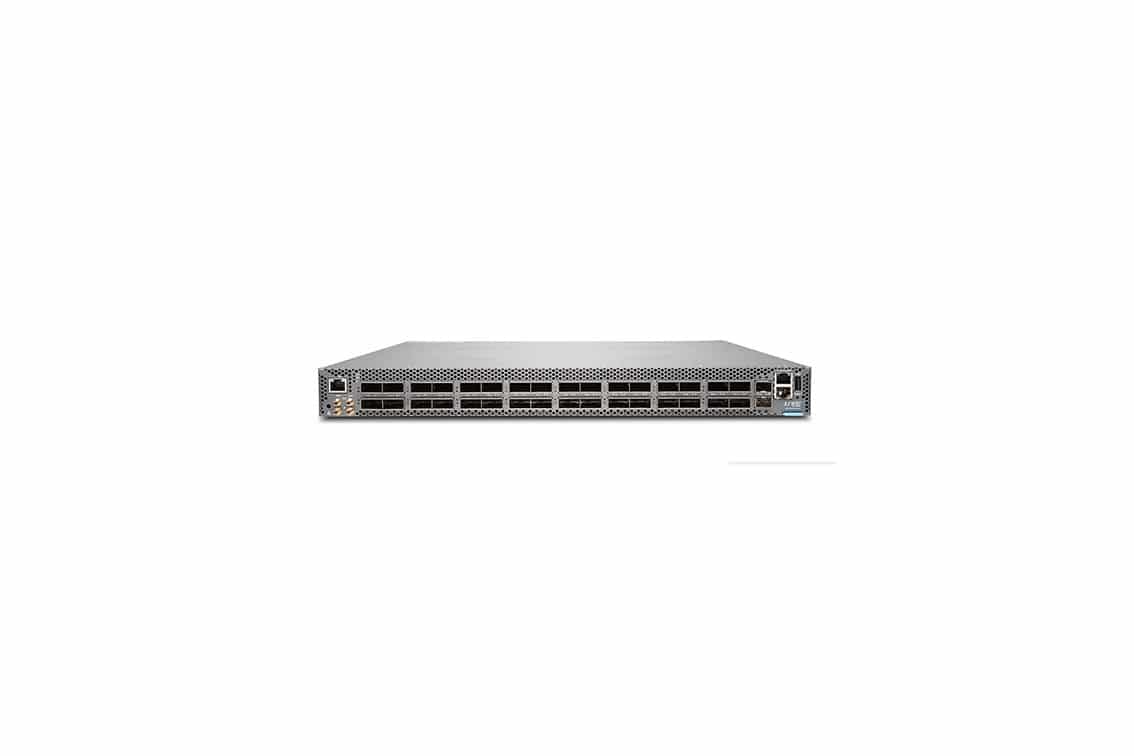

Juniper Networks QFX5220-32CD

Reference : QFX5220-32CD

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Modèles
- Juniper Networks QFX5220-32CD-AFI  : (matériel with logiciel de based), 32 ports QSFPDD / QSFP + / QSFP28, fans redondants, 2 CA alimentations, flux d'air rear to l'avant - Juniper Networks QFX5220-32CD-AFO : (matériel uniquement; services logiciels vendus séperément), 32 ports QSFP-DD / QSFP + / QSFP28, fans redondants, 2 blocs d'power supply CA, avant to l'rear flux d'air -Juniper Networks QFX5220-32CD-D-AFI: (matériel uniquement; services logiciels vendus séperément), 32 ports QSFP-DD / QSFP + / QSFP28, fans redondants, 2 alimentations CC, rear to l'avant flux d'air - Juniper Networks QFX5220-32CD-D-AFO : (matériel uniquement; services logiciels vendus séperément), 32 ports QSFP-DD / QSFP + / QSFP28, fans redondants, 2 alimentations CC, avant to l'rear flux d'air
Features
Protection per Firewall, support VPN, support ARP, support MPLS, support VLAN, espionnage IGMP, filtrage adresses MAC, support IPv6, haute availability, file d'attente à faible Latency (LLQ), detection early weighted aléatoire (WRED), protocole Spanning Tree (STP) support, support protocole RSTP (Rapid Spanning Tree Protocol), support protocole MSTP (Multiple Spanning Tree Protocol), espionnage DHCP, support liste de control d'accès (ACL), Quality of Service (QoS), VPN MPLS, espionnage MLD, groupe de troncs redondant (RTG) , flux d'air rear to l'avant, detection de transfert bidirectionnel (BFD), relais DHCP, analyseur de port de switch distant (RSPAN), pont de centre de data (DCB), based d'informations de management (MIB), protocole VLAN Spanning Tree (VSTP), prevention de boucle, redondant fans replaceables hot, sFlow v5, proxy IGMP, Multicast Source Discovery Protocol (MSDP), Smoothed Deficit Weighted Round Robin (SDWRR), Uplink Failure detection (UFD), Storm Control, Priority-Basedd Flow Control (PFC), IGMP querier, Root Guard, Zero-touch provisioning (ZTP), Denial of Servi protection ce (DoS), Switched Port Analyzer (SPAN), Encapsulated Remote SPAN (ERSPAN), Routed VLAN Interface (RVI), port-basedd VLAN, BPDU Guard, Q-in-Q tunneling, filter-basedd forwarding (FBF), Liaison VLAN, aggregation de liaisons multichassis (MC-LAG), alternative without boucle (LFA)
performance
Switching capacity : 12.8Tbps
Disque Dur
100 GB SSD
CPU
1 x Intel Xeon D-1500 series
Ports
- 32 ports of QSFP56-DD 400GbE - Ports de management: 2 (1 x 10/100 / 1000BASE-T and 2 x SFP + 1 Gbit / s) - USB: 1 port - Ports de console series RS-232: 1
Standards compliance
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second edition, GB 4943, EN 60950-1 Second edition, IEC 60950-1 Second edition, VCCI Class A, KN22 Class A, AS/NZS CISPR22:2004 Class A, EN 55022 Class A, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second edition, EN 300386, KN 61000-4
