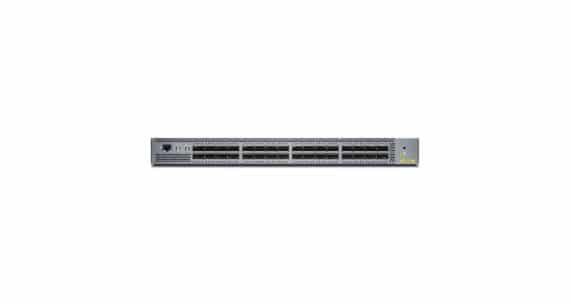

Juniper Networks QFX5200-32C-AFO

Reference : QFX5200-32C-AFO

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Product
Juniper Networks QFX5200-32C-AFO
performance
- Throughput: 3.2 Tbps - Forwarding capacity : 2.1 Bpps
Capacity
- ID de VLAN : 4096 - Groupes d'aggregation de liens : 128 - Maximum number of ports membres per LAG: 64 - Routes IPv4 (Unicast, prefixedd) : 128000 - Routes IPv4 (Unicast, routes d'hosts) : 104000 - Routes IPv4 (multicast): 52000 - Routes IPv6 (multicast): 28000 - Routes IPv6 (Unicast, prefixedd) : 98000 - Routes IPv6 (Unicast, routes d'hosts) : 52000 - Entries ARP: 32000 - Tunnels GRE: 1024 - Étiquettes MPLS: 16000 - Instances MSTP: 64 - Instances VSTP : 253 - Files d'attente hardware QoS per port: 10
MAC address table size
136000 entries
Data link protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, HDLC, Frame Relay, PPP, MLPPP, MLFR
Routing protocol
OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, Static IP routing, PIM-DM, GRE, OSPFv3, PIM-SSM, MLDv2, MLD
Algorithme de chiffrement
MD5, AES
Protocoles VoIP
SDP
Ports
- 32 x 100Gbit/40Gbit - QSFP28/QSFP+ - 1 x console management - 1 x USB 2.0 management - 2 x 1000Based-T RJ-45 management - 2 x SFP management
Power Over Ethernet (PoE)
- PoE+ - Budget PoE : 740W
Processor
1.8 GHz
RAM
16 GB
Disque Dur
SSD 64 GB
Flash memory
2 GB
Remote management protocol
SNMP 1, SNMP 2, Telnet, SNMP 3, SSH, CLI
Standards compliance
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1ak
Included software
JUNOS
Expansion slots
2 (total) / 2 (free) x Logement for extension
Power supply
CA 120/230 V (50/60 Hz)
Power consumption
480 Watt
chassis type
1U
