Juniper Networks QFX10002-60C

Reference : Juniper Networks QFX10002-60C

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Product

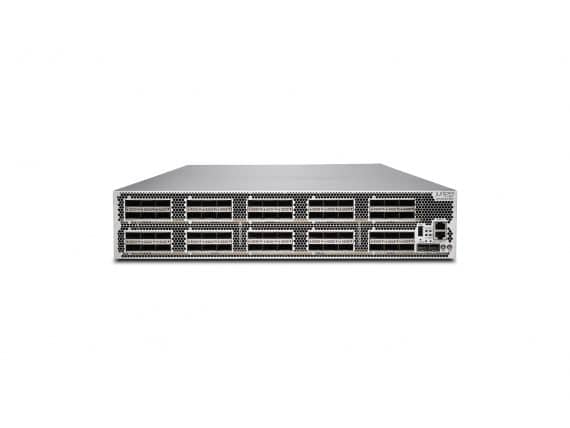

Juniper QFX10002-60C
performance
- Throughput: 12 Tbps - Performances de transfert: 4 Bpps
Capacity
- Entries ARP: 340000 - Interfaces virtuelles (VLAN): 4000 - Routes IPv4: 2000000 - Routes IPv6: 2000000 - Based d'informations de transmission IPv4 (FIB): 256000 - Based d'informations de transmission IPv6 (FIB): 256000 - Voies ECMP (Equal-Cost Multipathing): 64 - Routes IPv4 (multicast): 128000 - Routes IPv6 (multicast): 128000 - Files d'attente per port: 8 - Files d'attente de output virtuelles: 384000 - Tunnels GRE: 4096
MAC address table size
1M d'entries
Data link protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, HDLC, Frame Relay, PPP, MLPPP, MLFR
Routing protocol
OSPF, BGP-4, RIP-1, RIP-2, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, Static IP routing, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Bidirectional PIM, MSDP, ECMP, RIPng, MLDv2, MLD, Bidirectional Forwarding detection (BFD), CIDR
Algorithme de chiffrement
MD5, AES
Protocoles VoIP
SDP
Ports
- 60 x 40 GB QSFP+ (compatible bypass) - 1 x console management - 1 x USB 2.0 management - 1 x 1000Based-T RJ-45 management - 1 x SFP management -1 x SFP+ management
Power Over Ethernet (PoE)
- PoE+ - Budget PoE : 740W
Processor
2.3 GHz
RAM
16 GB
Disque Dur
SSD 64 GB
Flash memory
2 GB
Remote management protocol
SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, TFTP, SSH, CLI
Standards compliance
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1ak
Included software
JUNOS
Expansion slots
2 (total) / 2 (free) x Logement for extension
Power supply
120/230 V (50/60 Hz)
Power consumption
350 Watt
chassis type
2U
