Network equipment reference

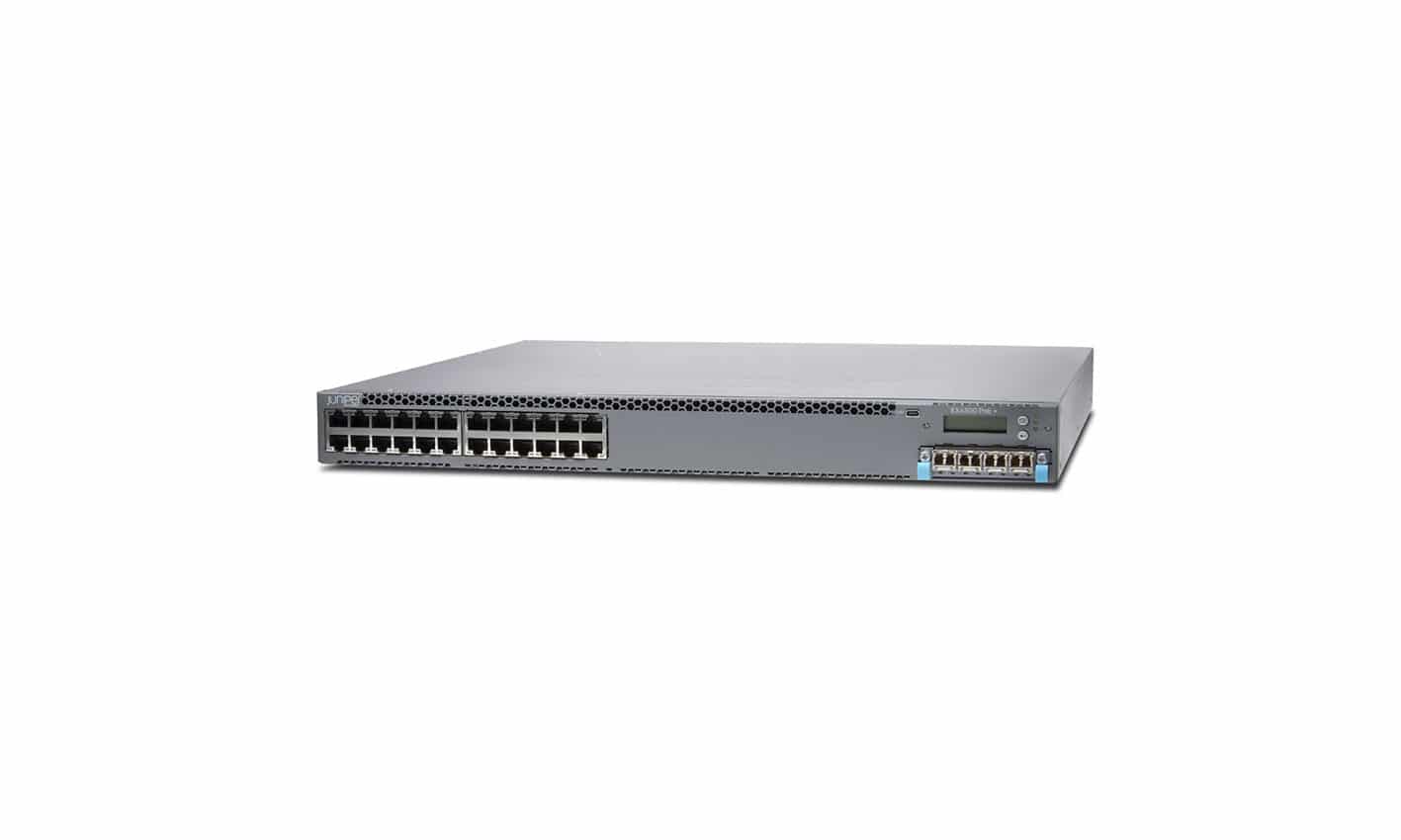

Juniper Networks EX4300-24T

Reference : Juniper EX4300-24T

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Product: Juniper EX4300-24T
performance: - Switching capacity (64 bytes de packet size): 448 Gbps - Throughput: 333 Mpps
Capacity: - Interfaces virtuelles (VLAN): 4093 - Instances VLAN Spanning Tree Protocol: 510 - Instances Multiple Spanning Tree Protocol: 64 - Entries ARP: 64000 - Routes IPv4 (multicast): 16000 - Routes IPv6 (multicast): 16000 - hosts IPv6: 15000 - Files d'attente hardware QoS per port: 12
MAC address table size: 64000 entries
Data link protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, HDLC, Frame Relay, PPP, MLPPP, MLFR
Routing protocol: OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, PIM-SM, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, Static routing IPv4, Static routing IPv6, RIPng, MPLS, Bidirectional Forwarding detection (BFD), VRRPv3, CIDR
Algorithme de chiffrement: MD5, TLS, PEAP, TTLS
Protocoles VoIP: SDP
Ports: - 24 x 1000Based-T RJ-45 - 4 x LAN 40 GB QSFP+ - 1 x 1000Based-T RJ-45 management - 1 x series management
Power Over Ethernet (PoE): - PoE+ - Budget PoE : 740W
Processor: 1.5 GHz
RAM: 2 GB
Flash memory: 2 GB
Remote management protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2
Standards compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1ak
Included software: JUNOS
Expansion slots: 1 (total) / 1 (free) x expansion Slots
Power supply: CA 120/230 V (50/60 Hz)
Power consumption: 350 Watt
chassis type: 1U
