Network equipment reference

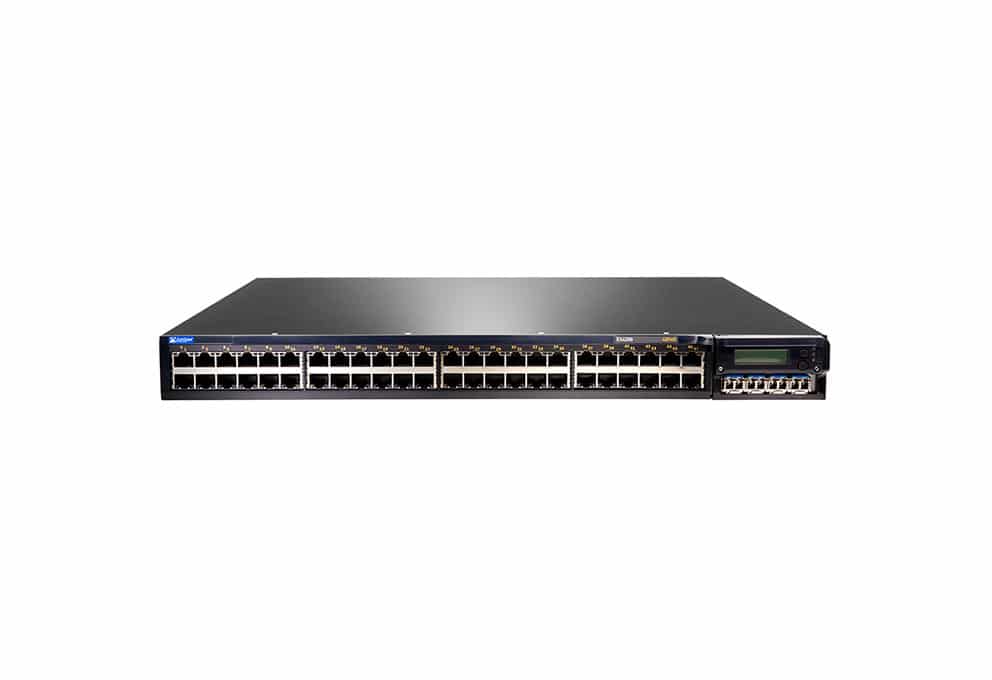

Juniper Networks EX4200

Reference : Juniper EX4200

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Product: Juniper Networks EX4200
Features: Remplacement de module hot, routing, Layer 3 switching, Layer 2 switching, compatible DHCP, Power over Ethernet (PoE), support of ARP, support de MPLS, support network local (LAN) virtuel, auto-uplink (MDI/MDI-X auto), IGMP snooping, support de Syslog, Denial of Service attack protection, stockage and retransmission, support of IPv6, haute availability, cryptage à 256 bits, DHCP snooping, Quality of Service (QDS), support RADIUS, support d'images extended, serveur DHCP, proxy DHCP, Dynamic ARP Inspection (DAI), sonde de température, Redundant trunk group (RTG), Time Domain Reflectometry (TDR), technologie Virtual chassis, Non-Stop Bridging (NSB), Routing continu, Graceful Route Engine Switchover (GRES)
Compliance standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
Routing protocol: OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, PIM-SM, Static IP routing, IGMPv3, Policy-basedd routing (PBR)
MAC address table size: 24000 entries
Algorithme de chiffrement: MD5, TLS, PEAP, TTLS
Remote management protocol: SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, RMON, SNMP 3, HTTP, HTTPS, SSH-2
Expansion slots: 1 (total) / 1 (free) x Logement for extension
Power supply: - Power supply electrical interne - enfichable hot - voltage requise : CA 120/230 V - Consommation en fonctionnement : 320 Watt
