Network equipment reference

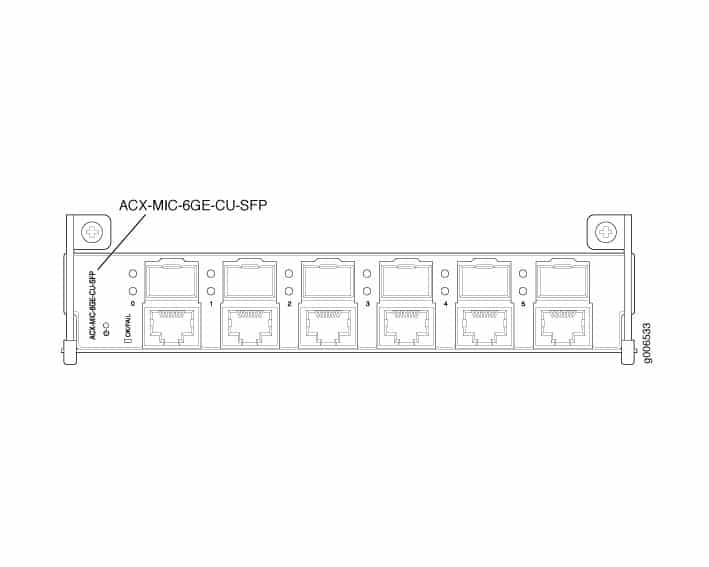

Juniper Networks - ACX-MIC-6GE-CU-SFP

Reference : ACX-MIC-6GE-CU-SFP

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Product: Juniper Networks - ACX-MIC-6GE-CU-SFP
Type de produit: expansion module - enfichable hot
Features: Power over Ethernet (PoE), VLAN support, auto-uplink (auto MDI/MDI-X), Virtual Route Redundancy Protocol (VRRP) support
RAM: 48 GB
Data link protocol: SONET/SDH
Throughput de ligne: OC-3/STM-1
Protocole de liaison: 1 Gigabit Ethernet
Rate de transfert des data: 10.31 Gbps
Remote management protocol: SNMP
Type de câblage: Ethernet 1000Based-TX, Ethernet 100Based-TX, Ethernet 10GBASE-T
performance: - Throughput : 960 Gbps
Ports: - 6 - SFP (mini-GBIC) - 6 x 1000Based-T (PoE) - RJ-45
Compliance standards: certified FFC class A, EN 61000-3-2, VCCI class A ITE, EN 61000-3-3, EN 55022 class A, UL 60950, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, AS/NZ 3548 Class A, EN 61000-4-5, EN 61000-4-11, EN 60950-1, EN 60825-1, BSMI Class A, EN 60825-2, EMI
Standards compliance: IEEE 802.1Q, IEEE 802.3ad (LACP)
Capacity: QoS data queues: 512000
Connecteurs d'extension: - 2 (total) / 2 (free) x connecteur d'extension
Compatibilité: Juniper Networks ACX Series 1000, 2000, 4000
system d'exploitation requis: JUNOS
Power supply: Consommation : 18 Watt
