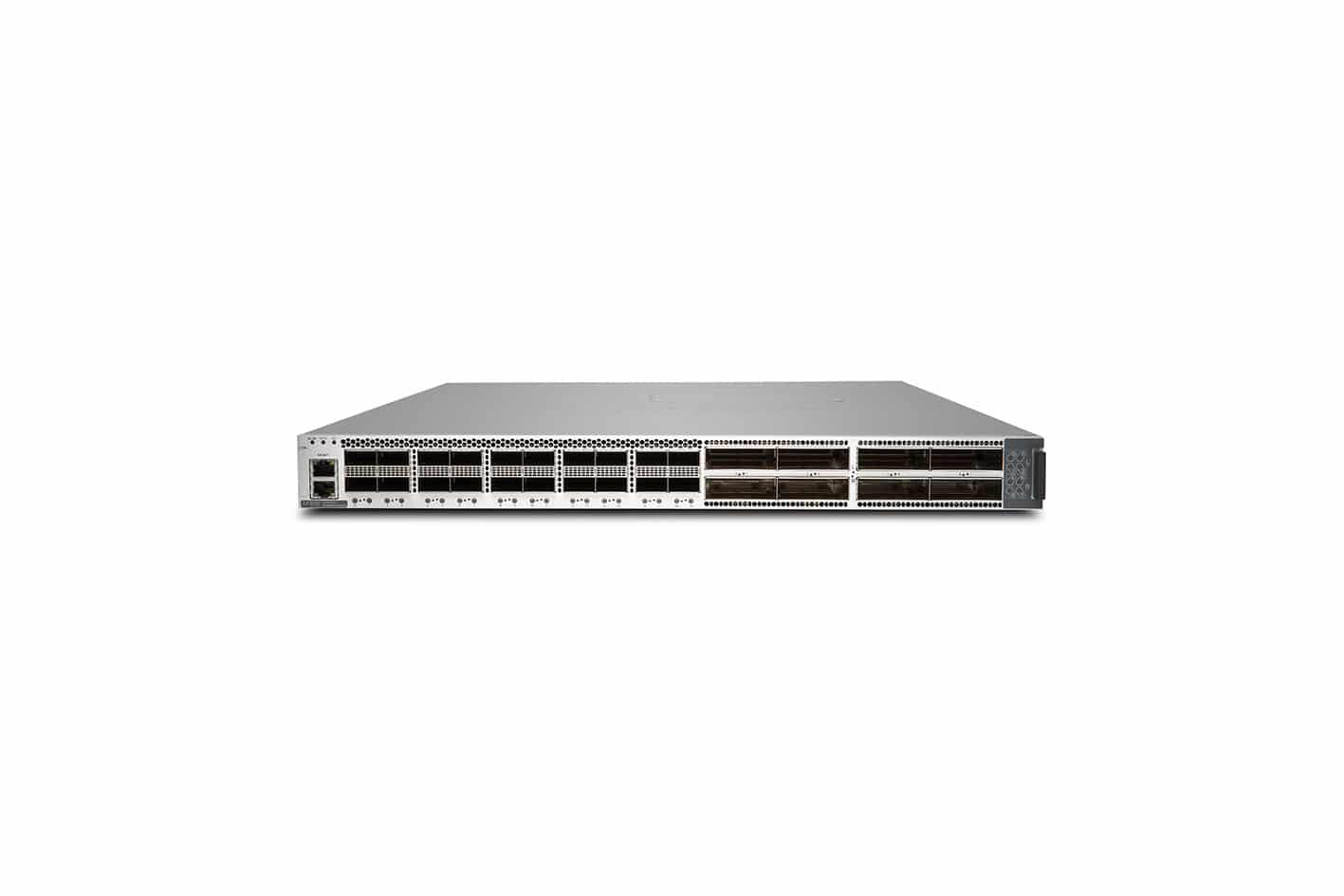

Juniper Networks ACX6360

Technical specifications

Product

Juniper Networks ACX 6360

Features

Layer 3,Layer 2, support VPN,Precision Time Protocol (PTP),Haute availability, Class of Service (CoS), Call Admission Control (CAC), minutage, Precision Time Protocol (PTP),Quality of Service QoS

performance

- Switching capacity : 3.6 Tbps

Capacity

- Entries ARP: 256000 - Interfaces virtuelles (VLAN): 32000 - IPv4 entries de Routing table: 1000000 - Entries de Routing table IPv6: 1000000 - Entries Multicast (IPv4): 256000 - Entries Multicast (IPv6): 256000 - Politique: 16000 QoS files d'attente hardware : 8

MAC address table size

8000 entries

Protocole de transport

IPSec

Data link protocol

Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet,100 Gigabit Ethernet

Routing protocol

IS-IS, OSPF,MPLS,BGP,VXLAN

Algorithme de chiffrement

MD5, AES

Protocoles VoIP

SDP

Ports

- 20 x 100GbE pluggable QSFP28, - 8 x 100G/200G CFP2-DCO Coherent DWDM

Power Over Ethernet (PoE)

- PoE+

Processor

Six-Core Xeon D

RAM

4 GB

Disque Dur

40 GB

Flash memory

1 GB

Remote management protocol

SNMP 1, SNMP 2, SNMP 3, CLI

Standards compliance

IEEE 802.3ah, IEEE 802.1ag, G.703, ITU-T Y.1731, NEBS niveau 3, CISPR 22 class A, EN 61000-3-2, EN 61000-3-3, EN 55022 class A, CB, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 68, JATE, CS-03, EN 61000-4-5, R&TTE, EN 61000-4-11, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, TBR21, EN 60825-1, ETS 300753, CAN/CSA C22.2 No. 60950-1, TBR12, TBR13, GR-1089-CORE, VCCI Class B,

Included software

JUNOS

Expansion slots

- 2 (total) / 0 (free) x Modular Interface Card (MIC)

Nbre de modules installedd

2 (installed) /2 (maximum)

Power supply

100-240 VAC

Power consumption

756.5 W

chassis type

1U
