Network equipment reference

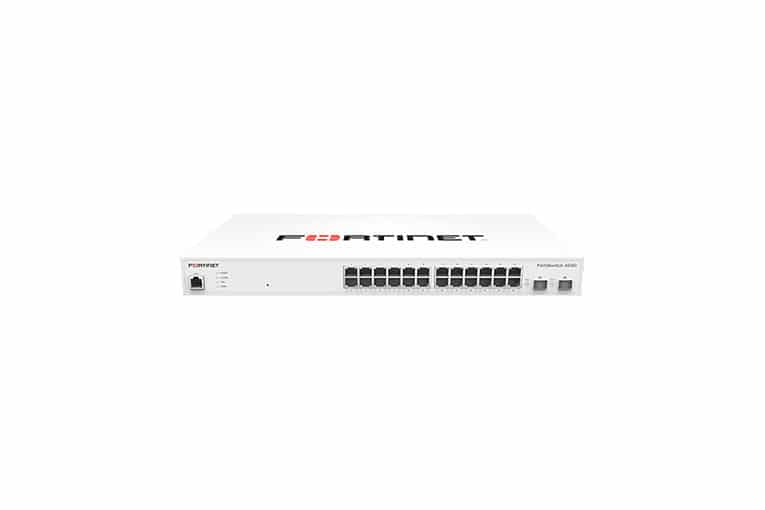

Fortinet FortiSwitch FS-424D

Reference : FS-424D

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Features: control flux, mise en miroir ports, support protocole SNTP, support protocole STP (Spanning Tree Protocol), support protocole RSTP (Rapid Spanning Tree Protocol), support protocole Multiple Spanning Tree Protocol (MSTP), support d'images extended, support LLDP, Link Aggregation Control Protocol (LACP), based d'information de management (MIB), balisage VLAN, tampon de packets 1,5 MB
capacitys: - Interfaces virtuelles (VLAN): 4000 - Maximum number of groupes d'aggregation: 13
performance: - Switching capacity: 88 Gbps - Forwarding capacity de packets: 131 Mpps - Latency: 1 µs
Remote management protocol: SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Ports: - 24 x 1000Based-T RJ-45 - 2 x LAN 10 GB SFP+ - 1 x console RJ-45 - 1 x management (Gigabit LAN) RJ-45
RAM: 1 GB
Normes de conformités: EEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1AX
Montable en rack: 1U
