Network equipment reference

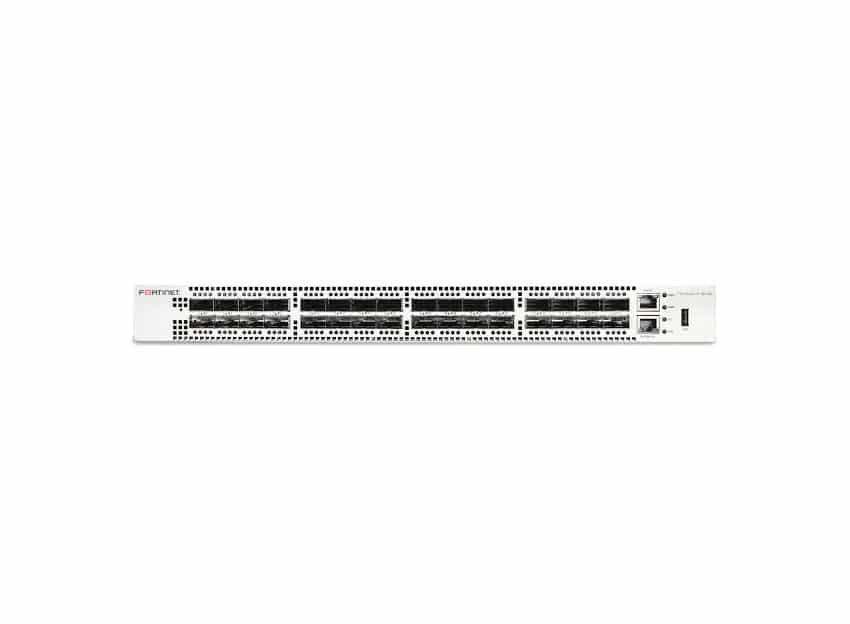

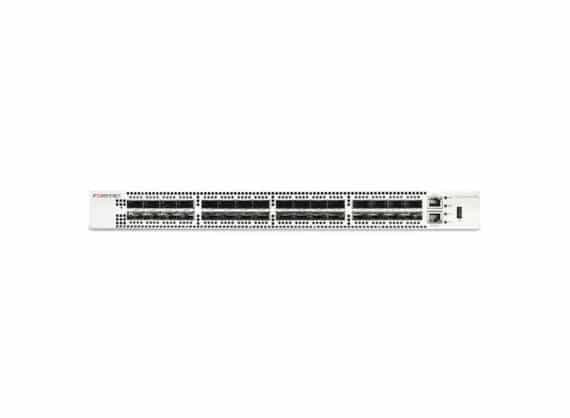

Fortinet FortiSwitch FS-3032D

Reference : FS-3032D

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Features: control flux, mise en miroir ports, support protocole SNTP, support protocole STP (Spanning Tree Protocol), support protocole RSTP (Rapid Spanning Tree Protocol), support protocole Multiple Spanning Tree Protocol (MSTP), support d'images extended, support LLDP, Link Aggregation Control Protocol (LACP), based d'information de management (MIB), balisage VLAN, tampon de packets 1,5 MB
capacitys: - Interfaces virtuelles (VLAN): 4000 - Maximum number of groupes d'aggregation: 13
performance: - Switching capacity: 1280 Gbps - Latency port-à-port: 1 µs - Performances de transfert: 2400 Mpps
Remote management protocol: SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Ports: - 32 x QSFP+ - 1 x 1000Based-T RJ-45 management - 1 x console RJ-45 management
MAC address table size: 128000 entries
Normes de conformités: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1AX
Montable en rack: 1U
