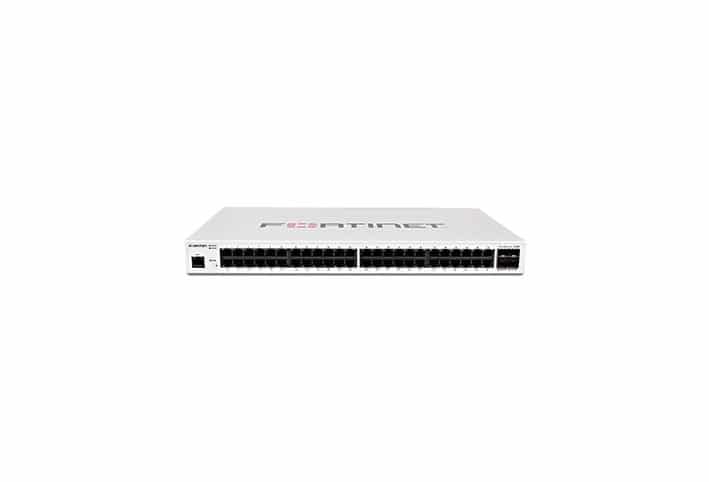

Fortinet FortiSwitch FS-248D

Reference : FS-248D

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Features: control flux, auto-negotiation, mise en miroir ports, support protocole SNTP, support protocole STP (Spanning Tree Protocol), support protocole RSTP (Rapid Spanning Tree Protocol), support protocole Multiple Spanning Tree Protocol (MSTP), support d'images extended, STP Root Guard, without fans, Link Aggregation Control Protocol (LACP), client DHCP, based d'information de management (MIB), tampon de packets 512 KB, authentification 802.1x, Storm Control, Back Pressure Support, Link Aggregation, Management Information Based (MIB) II, Guest VLAN, STP BPDU Guard, management IPv6, VLAN Tagging, FortiLink Mode, MAC accesss Bypass (MAB), serveur Telnet
capacitys: - Interfaces virtuelles (VLAN): 4000 - Maximum number of groupes d'aggregation: 26
performance: - Switching capacity: 108 Gbps - Forwarding capacity de packets: 155 Mpps - Latency: 1 µs
Remote management protocol: SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Ports: - 48 x 1000Based-T RJ-45 - 4 x Gigabit LAN SFP - 1 x console RJ-45 - 1 x management (Gigabit LAN) RJ-45
Normes de conformités: EEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1AX
Montable en rack: 1U
