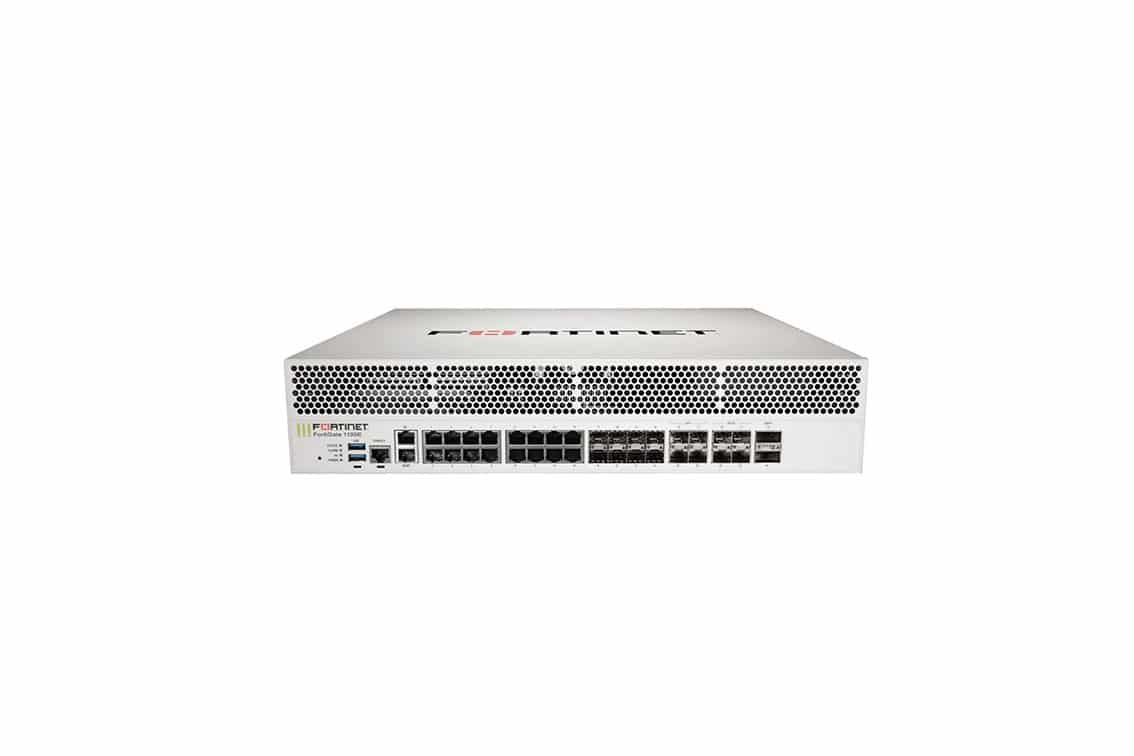

Fortinet FortiGate 1101E

Technical specifications

Caractéristique

Protection per Firewall, support VPN, mise en forme trafic, filtrage de contenu, analyse antivirus, system de prevention intrusions (IPS), protection anti-malware, protection contre les menaces Web, support CAPWAP, provisionnement Zero-touch (ZTP)

performance

- Firewall throughput (packet size of 1518 bytes): 80 Gbps - Firewall throughput (packet size of 512 bytes): 80 Gbps - Firewall throughput (packet size of 64 bytes): 45 Gbps - Firewall throughput IPv6 (packet size of 86 bytes): 45 Gbps - Latency Firewall (UDP 64 bytes): 3 µs - Firewall throughput: 67.5 Mpps - VPN throughput (512 bits IPSec): 48 Gbps -VPN throughput (SSL): 8.4 Gbps - Throughput d'inspection SSL: 10 Gbps - Throughput d'inspection SSL : 6500 connections per second - Throughput control d'application (AVC): 26 Gbps - Throughput CAPWAP (1444 bytes, UDP): 43 Gbps - IPS throughput (mix de trafic d'entreprise): 12.5 Gbps - Throughput NGFW: 9.8 Gbps - Threat protection throughput : 7,1 Gbit / s

Capacity

- Concurrent sessions: 8000000 - New sessions per second: 500000 - policies de Firewall: 100000 - VPN tunnels IPSec passerelle to passerelle: 20000 - VPN tunnels IPSec client to passerelle: 100000 - Users VPN SSL concurrent: 10000 - Concurrent sessions d'inspection SSL: 780000 - Virtuel domaines: 10 (maximum 250) - Number of FortiSwitches: 128 - Number d'appareils FortiAP: 4096 - Number d'appareils FortiToken: 20000 - Number of FortiClients enregistrés: 20000

Ports

- 2 x 40Gb Ethernet - QSFP+ - 4 x 10Gb Ethernet/25Gb Ethernet - SFP+/SFP28 - 4 x 10Gb Ethernet - SFP+ - 8 x 1000Based-X - SFP (mini-GBIC) - 16 x 1000Based-T - RJ-45 - 2 x 1000Based-T (management) - RJ-45 - 1 x console - RJ-45 - 2 x USB 3.0 - Type A

Disque Dur

2 x 480 Gb SSD OS

Power supply

- AC 120/230 V (50/60 Hz) - Consommation electrical opérationnelle 222 Watt
