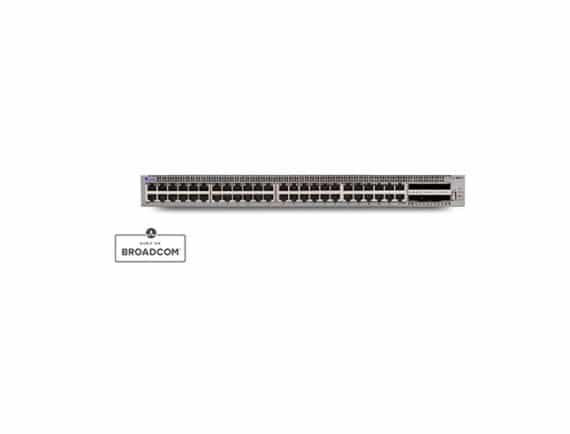

Extreme Networks VSP 7254XTQ - EC7200A2B-E6

Reference : EC7200A2B-E6

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Extreme Networks VSP 7254XTQ: Switch Ethernet 54 ports VSP 7254XTQ, prenant en charge 48 ports 10GBASE-T and 6 x 40GBASE-QSFP +. includes a seul CA 800W Power supply, flux d'air rear and licence de logiciel de based. Kit de Mounting on rack coulissant vendu séperément.
Features: Auto-negotiation, support of ARP, support network local (LAN) virtuel, mise en miroir ports, inspection approfondie, sFlow, support protocole Multiple Spanning Tree Protocol (MSTP), Quality of Service (QDS), flux d'air avant-rear, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Virtual Routing and Forwarding (VRF), fans replaceable hot, IPFIX, 6 fans, Shortest Path Bridging (SPB), Virtual extensible LAN (VXLAN), support IP Shortcut Routing, Rapid Reconfiguration of Spanning Tree (RSTP), Test de boucle métallique for lignes d'abonnés (MLT),VLAN based sur le port, support Virtual Service Networks (VSN),
performance: - Switching capacity: 2.56 Tbps - Rate de transfert: 1,428 Ms
Capacity: - Adresse MAC: 224000 - VLAN based on les ports: 4059 - VLAN privés / E-Tree: jusqu'à 200 - Instances MSTP: 12 - Groupes MLT / LACP: 72 - Liens MLT per groupe: 8 - Liens LACP per groupe: 8 actifs - Interfaces VLACP Extreme Networks: 54 and jusqu'à 72 lorsque les 40 ports Gigabit sont canalisés - VLAN SLPP Extreme Networks: 128
Protocole de routage: RIP, OSPF, eBGP, BGP +, ECMP, DvR / VRRP, PIM-SM / SSM,et VRF. En outre, prend en charge Static, RIPng, OSPFv3,Homologation BGPv6, ECMP, VRRP and VRF for Déploiements IPv6
Ports: - 48 x 10GBASE-T - 6 x 40GBASE-QSFP+ OS
Normes de conformités: BSMI, EN 61000-3-2, SABS, EN 61000-3-3, EN55024, CB, AS/NZS 60950-1, CCC, ICES-003 class A, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, CDRH, VCCI Class A, EAC, GB 9254, EN 300386 V1.6.1, RoHS 2011/65/EU, EN 55011 class A, CISPR 11 class A, WEEE 2012/19/EU, EMC 2014/30/EU, FCC CFR47 Part 15 B Class A, LVD 2014/35/EU, GB 4943.1-2011, IEC/EN 61000-4-3, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, CNS 14336-1, EN 62368-1, IEC 62368-1, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032 Class A, ETSI EN 300019-2-3 V2.1.2, ETSI EN 300019-2-2 V2.1.2, NRCS, EN/ETSI 300019-2-1 v2.1.2, EN/ETSI 300753, ASTM D3580, CISPR 24:2010 Class A, ACMA RCM, CISPR 32 Class A, EN 60825-1 Class 1, CAN/CSA-C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, China RoHS SJ/T 11363-2006, RoHS CNS 15663, FCC CFR21 Part 1040.10, AS/NZS CISPR 32
Montable en rack: 1U
