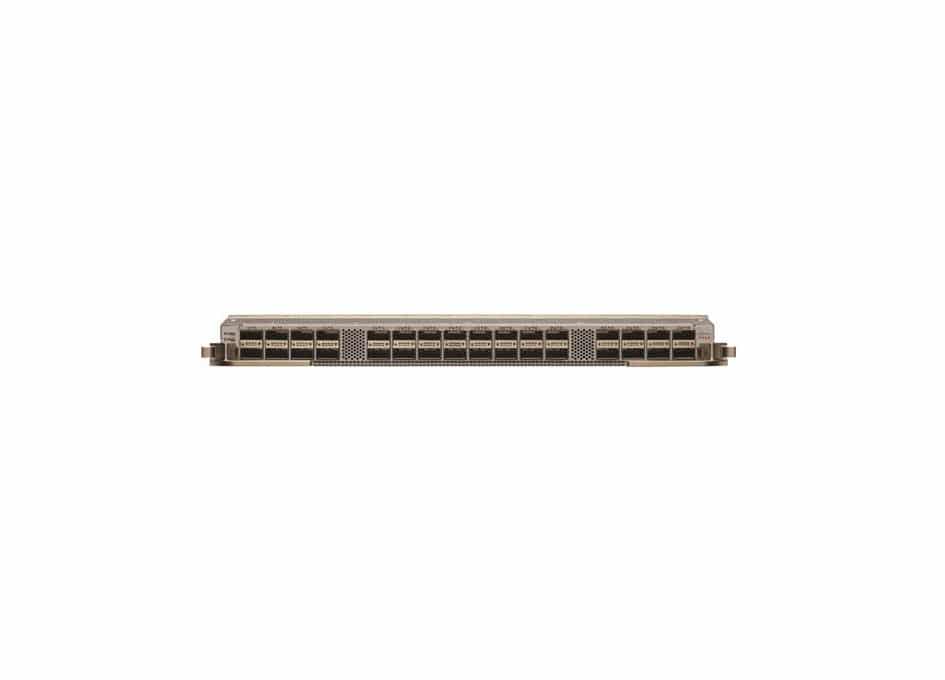

Cisco Nexus N9K-X9732C-EX

Reference : N9K-X9732C-EX

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Type d'appareil: expansion module
Features: support protocole HSRP (Hot Standby Router Protocol), support points de terminaison tunnel VXLAN (VTEP), tampon de packets de 160 MB
Capacity: - Entries (IPv4) LPM : 600000 - Entries (IPv6) LPM : 300000 - Entries d’adresse MAC : 64000 - Routes de multicast: 32000 - VLAN pris en charge: 4096 - Routing virtuel and acheminement (VRF): 1000 instances - instances= Rapid Spanning Tree per VLAN : 507 - instances MST: 64
performance: - performance: 6.4 Tbps - performance: 9.52 Bpps
Data link protocol: 100 Gigabit Ethernet
Ports: - 32 x 100Gb - QSFP28
Compatibilité: Cisco Nexus 9504, 9508, , 9516
Power supply: 840 Watt
