Network equipment reference

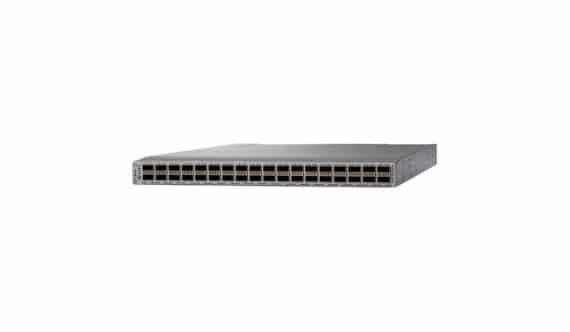

Cisco Nexus 9236C- L3 - 36 Ports

Reference : Cisco Nexus 9236C

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Product: Cisco Nexus 9236C- L3 - 36 Ports
Features: control flux, Modular design, balancing de charge, support network local (LAN) virtuel, IGMP snooping, support de Syslog, mise en file d'attente Weighted Round Robin (WRR), control storm de Broadcast, Multicast Storm Control, Unicast Storm Control, Weighted Random Early detection (WRED), support protocole STP (Spanning Tree Protocol), support protocole RSTP (Rapid Spanning Tree Protocol), support protocole Multiple Spanning Tree Protocol (MSTP), assistance accesss Control List (ACL), Quality of Service (QDS), support RADIUS, support RDMA, Virtual Route Forwarding-Lite (VRF-Lite), Uni-Directional Link detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), support LLDP, relais DHCP, Link Aggregation Control Protocol (LACP), Virtual Routing and Forwarding (VRF), Class of Service (CoS), support DiffServ Code Point (DSCP), VXLAN
performance: - Bande passante : 7.2 Tbps
Capacity: - Entries (IPv4) de correspondance de prefixedd le plus long (LPM): 256000 - Entries de table host (IPv4): 256000 - Routes IPv4 (multicast): 32000 - Groupes IGMP: 32000 - Interfaces virtuelles (VLAN): 4096 - Entries VRF (Routing and transfert virtuel): 16000 - Groupes ECMP: 256 - Instances MST: 64
Routing protocol: OSPF, RIP-2, BGP, EIGRP, PIM-SM, PIM-SSM, MSDP, ECMP, MPLS
Protocole de gestion à distance :: SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Ports: - 36 x 100Gbit LAN QSFP28 - 1 x USB - 1 x serial (RS-232) - 3 x management RJ-45
Standards compliance: IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 801.1p, IEEE 802.1ab (LLDP), IEEE 802.3ba
Included software: Cisco NX-OS
Expansion slots: 0 (total) / 0 (free) x expansion Slots
Power supply: AC 120/230 V / DC -48 -60 V (50 - 60 Hz)
chassis type: Rack-mountable - 1U
