Network equipment reference

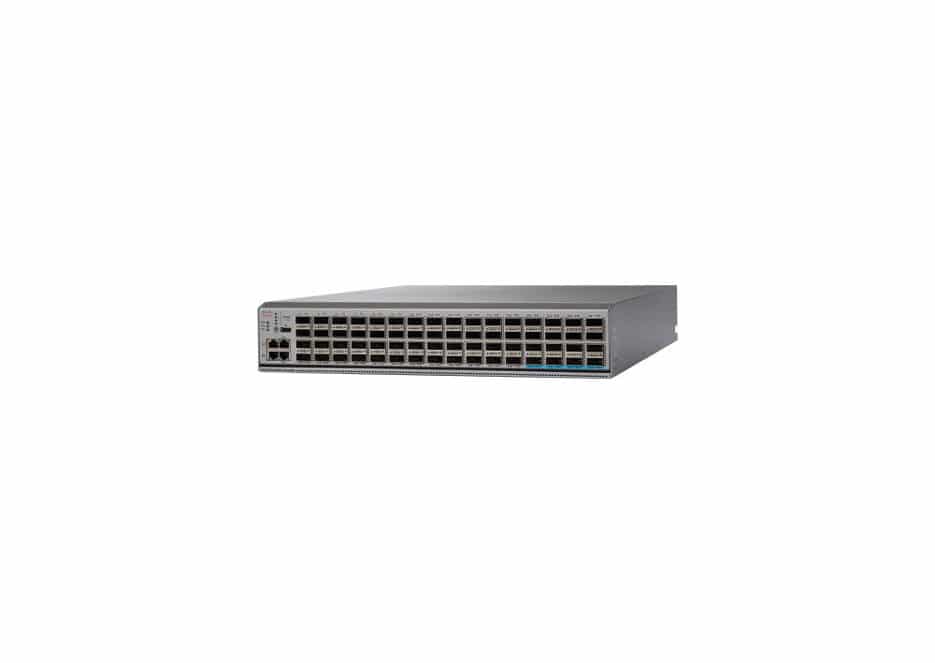

Cisco Nexus 92304QC - L3 - 56 Ports

Reference : Cisco Nexus 92304QC

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Product: Cisco Nexus 92304QC chassis - L3 - 56 Ports
Features: support network local (LAN) virtuel, IGMP snooping, support protocole Multiple Spanning Tree Protocol (MSTP), assistance accesss Control List (ACL), Per-VLAN Rapid Spanning Tree (PVRST), support protocole HSRP (Hot Standby Router Protocol), Virtual Routing and Forwarding (VRF), spanning côté port, support VTEP (VXLAN tunnel endpoints)
performance: - Switching capacity : 6.08 Tbps
Capacity: - Entries (IPv4) de correspondance de prefixedd le plus long (LPM): 16000 - Groupes HSRP: 490 - Adresses MAC: 96000 - Interfaces virtuelles (VLAN): 4096 - Voies ECMP (Equal-Cost Multipathing): 64 - Instances Multiple Spanning Tree Protocol: 64 - Instances Rapid Per-VLAN Spanning Tree Plus: 507 - Entries VRF (Routing and transfert virtuel): 16000 - Entries d'observation IGMP: 32000 - Entries ACL (entries): 4000 - Entries ACL (output): 2000
Protocole de gestion à distance :: SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Routing protocol: OSPF, RIP-2, BGP, EIGRP, HSRP, PIM-SM, PIM-SSM, MSDP, ECMP
Ports: - 8 x 100Gbit LAN QSFP28 - 56 x 40Gbit LAN QSFP+ - 1 x USB - 3 x management RJ-45 - 1 x serial (RS-232) RJ-45
RAM: 16 GB
Standards compliance: IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP)
Included software: Cisco NX-OS
Expansion slots: 0 (total) / 0 (free) x expansion Slots
Power supply: CA 120/230 V (50/60 Hz)
chassis type: Rack-mountable - 2U
