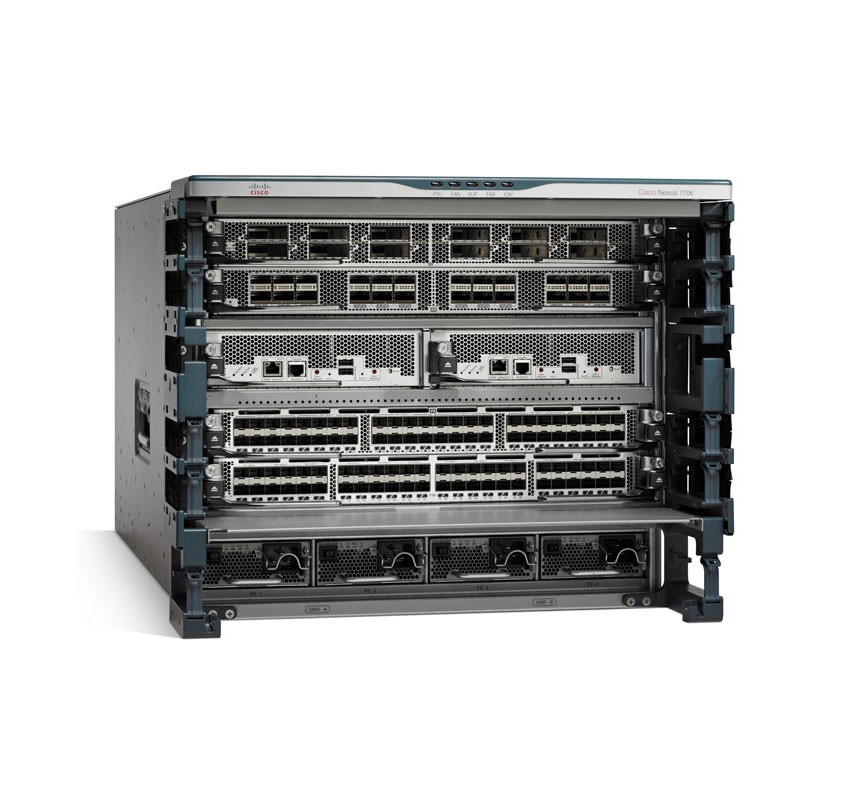

Cisco Nexus 7700 6 Slot Châssis

Reference : Cisco Nexus 7700 6 Slot Châssis

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Product: Cisco Nexus 7700 6 Slots chassis
Features: support of ARP, support network local (LAN) virtuel, support de Syslog, mise en file d'attente Weighted Round Robin (WRR), control storm de Broadcast, Multicast Storm Control, Unicast Storm Control, support protocole Multiple Spanning Tree Protocol (MSTP), DHCP snooping, assistance accesss Control List (ACL), Quality of Service (QDS), support d'images extended, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Link Aggregation Control Protocol (LACP)
performance: - Largeur de bande: 2.6 Tbps - Sessions actives SPAN: 4
Capacity: - Instances Multiple Spanning Tree Protocol: 64 - Groupes HSRP: 490 - Par instances VLAN Rapid Spanning Tree: 4000 - Number of liens maximum in a canal de port: 32 - Maximum number of canaux de port: 512 - Chemins ECMP: 64 - Routing virtuel and instances de renvoi (VRF): 16000 - support de VLAN: 4096 - Entries ACL (output): 2000 - Groupes d'espionnage IGMP: 32000 - Routes de multicast: 32000
MAC address table size: 512000 entries
Flash memory: 128 GB
Ram: 24 GB
Disque dur: 128 GB SSD
Protocole de gestion à distance :: SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Routing protocol: OSPF, RIP, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS, RSVP
Ports: - 6 x 100Gbit/40Gbit - QSFP28 - 48 x 10GBased-T RJ-45 - 1 x management RJ-45 - 1 x management SFP+ - 1 x USB - 1 x series (RS-232)
Standards compliance: NEBS niveau 3, ETSI, CISPR 22 class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 55022 class A, EN50082-1, EN 61000-6-1, EMC, ICES-003 class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1, AS/NZS 60950, AS/NZS, VCCI Class A, KN22
Logiciel requis: Cisco NX-OS
Expansion slots: 6 (total) / 6 (free) x Logement for extension
Power supply: - Power supply electrical interne - enfichable hot - Number installed : 0 (installed) / 8(maximum)
chassis type: Rack-mountable - 9U
