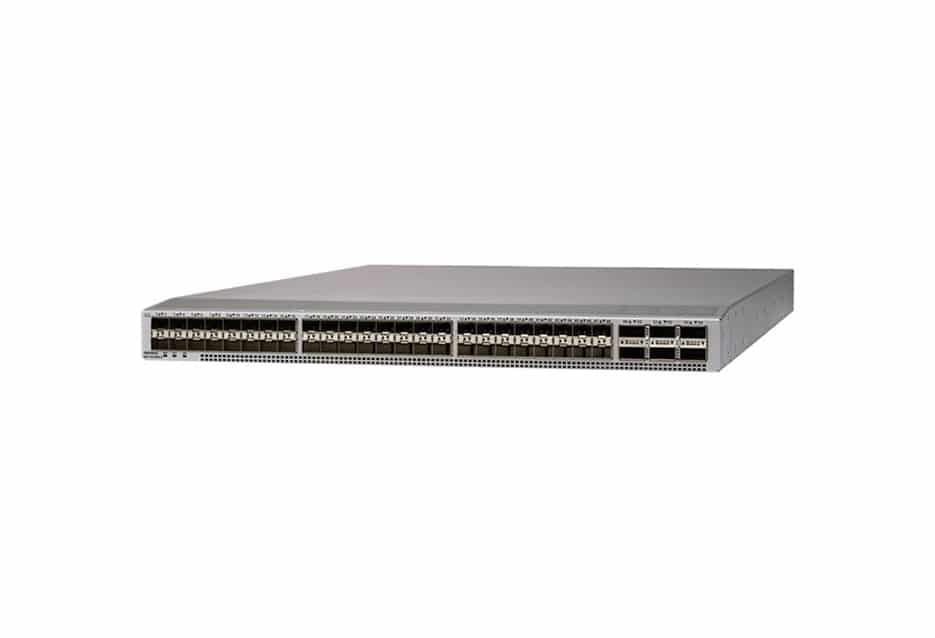

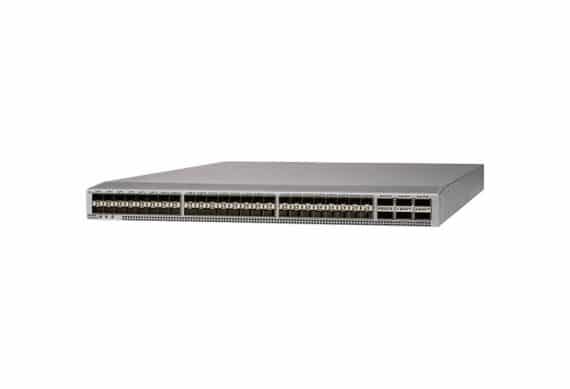

Cisco Nexus 36180YC-R

Reference : N3K-C36180YC-R

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Product: Cisco Nexus 36180YC-R
Features: support de BOOTP, support of ARP, support de MACsec, Internet Control Message Protocol (ICMP), Role-Basedd accesss Control (RBAC), Source-Specific Multicast (SSM), client DNS, Power On Auto Provisioning (POAP), proxy ARP, DHCP Helper, Embedded Event Manager (EEM), Network Timing Protocol (NTP)
performance: - Switching capacity: 1.8 Tbps - Rate de transfert : jusqu'à 1,67 bbps
Capacity: - Unité de transmission maximale (MTU) (bytes) : 9216 - support de VLAN: 4096 - Instances Rapid Spanning Tree Protocol: 512 - Instances Multiple Spanning Tree Protocol: 64 - Entries ACL (entries): 7000 - Routes de correspondance with le prefixedd le plus long (LPM) : 256000 - Entries d'host IP: 750000 - Entries multicast (layers 3): 128000 - EtherChannels (with vPC) : 256 - Ports per EtherChannel : 32
MAC address table size: 750000 entries
Flash memory: 128 GB
Ram: 32 GB
Protocole de gestion à distance :: SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Routing protocol: OSPF, RIP-2, HSRP, VRRP, OSPFv2, Static IP routing, ECMP, CIDR
Ports: - 6 x 100Gbit/40Gbit LAN QSFP28 - 48 x 1/10/25Gbit LAN SFP+ - 1 x management (Gigabit LAN) - 1 x management (RS-232) - 1 x USB
Standards compliance: IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP)
Included software: Cisco NX-OS
Power supply: CA 120/230 V (50/60 Hz)
chassis type: Rack-mountable - 1U
