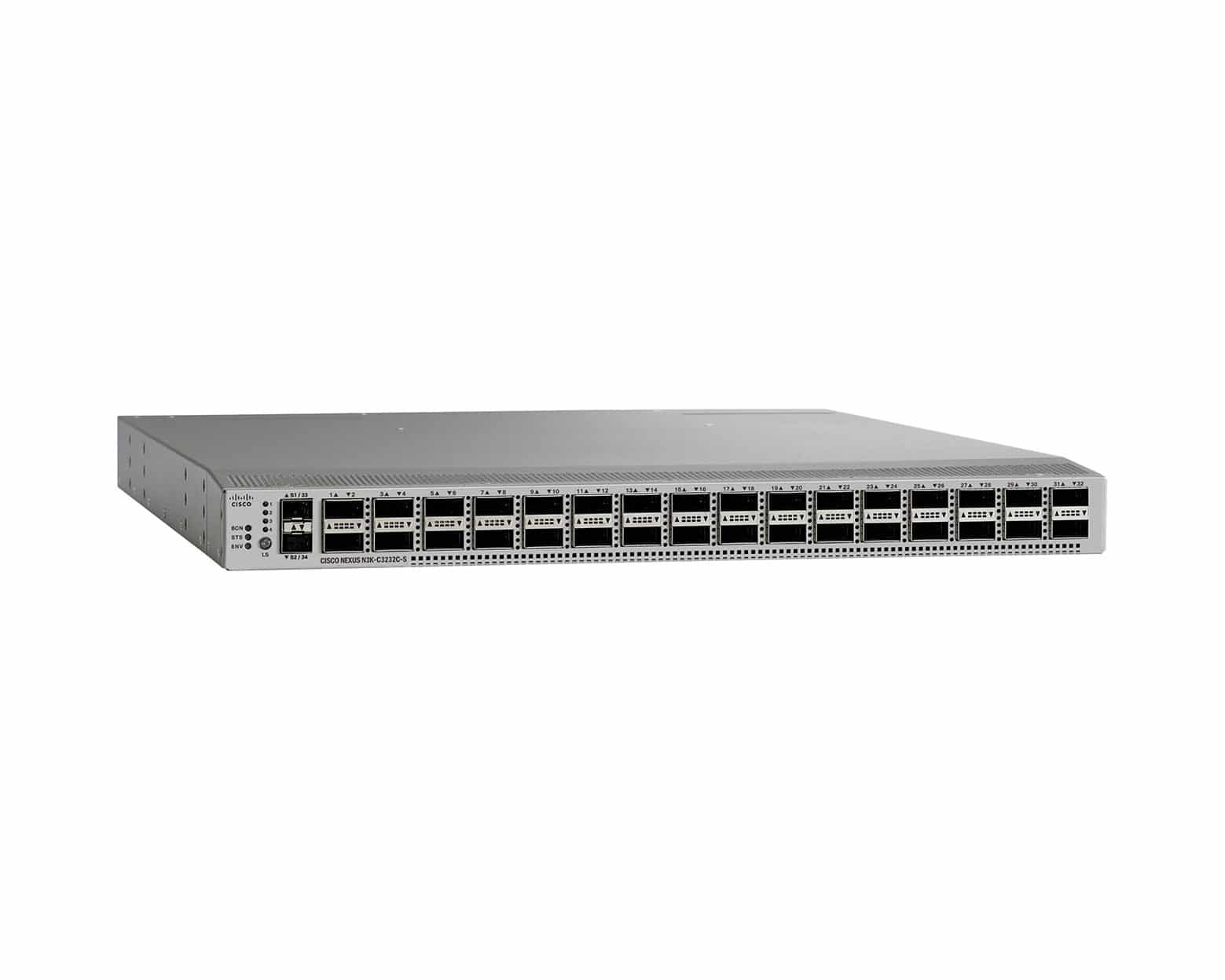

Cisco Nexus 3232C

Reference : Cisco Nexus 3232C

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Product: Cisco Nexus 3232C
Features: Compatible DHCP, support network local (LAN) virtuel, support de Syslog, Multicast Storm Control, Unicast Storm Control, support protocole RSTP (Rapid Spanning Tree Protocol), support protocole Multiple Spanning Tree Protocol (MSTP), assistance accesss Control List (ACL), Routing EIGRP Stub, Equal-Cost Multipath (ECMP), support LACP, support LLDP, support protocole HSRP (Hot Standby Router Protocol), fans redondants replaceables hot, fans redondants, Multicast Source Discovery Protocol (MSDP), tampon de packets 16 MB, technologie Virtual PortChannel (vPC), Virtual extensible LAN (VXLAN), Open Shortest Path First (OSPF), Source-Specific Multicast (SSM), Ethernet Virtual Private Network (EVPN), admission de flux d'air latérale, Power On Auto Provisioning (POAP)
performance: - Switching capacity: 6.4 Tbps - Performances de transfert: 1.4 Bpps
Capacity: - Interfaces virtuelles (VLAN): 4096 - Instances Multiple Spanning Tree Protocol: 64 - Instances Rapid Spanning Tree Protocol: 512 - Entries ACL (entries): 7000 - Entries ACL (output): 1000 - Entries multicast (layers 3): 64000 - Entries de table host (IPv4): 72000
MAC address table size: 128000 entries
Ram: 8 GB
Protocole de gestion à distance :: SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Routing protocol: RIP-2, BGP, EIGRP, VRRP, OSPFv2, PIM-SM, Static IP routing, PIM-SSM, MSDP, Policy-basedd routing (PBR)
Ports: - 32 x QSFP+
Standards compliance: IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP)
Included software: Cisco NX-OS
Power supply: CA 120/230 V (50/60 Hz)
chassis type: Rack-mountable - 1U
