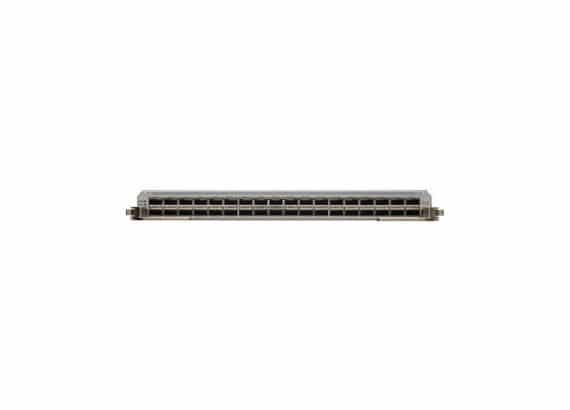

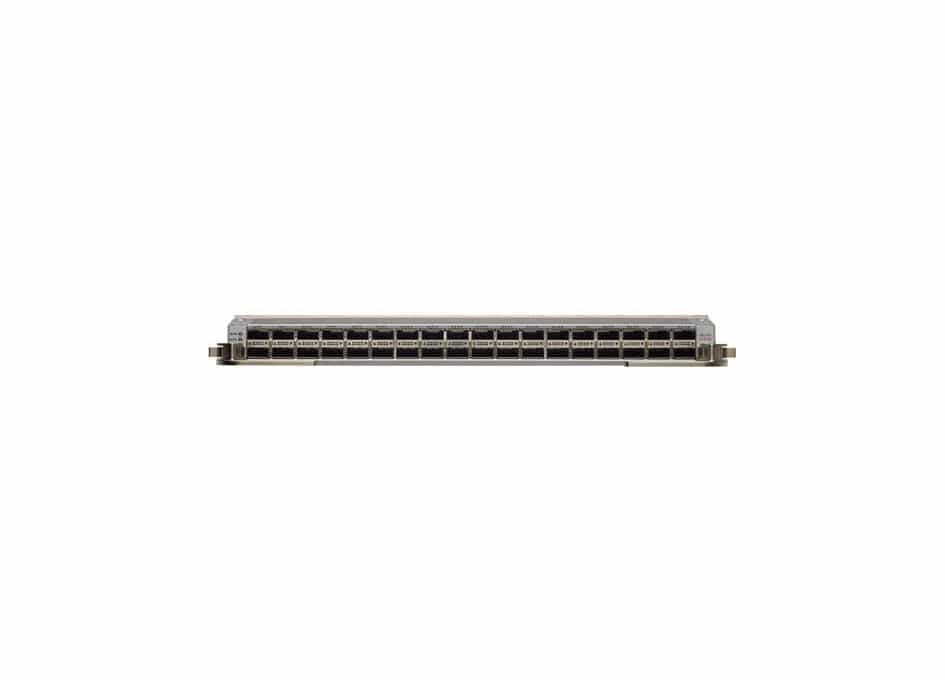

Cisco NC55-36X100G-SB - IPoDWDM Modular Line Card

Reference : NC55-36X100G-SB=

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Description du produit: Cisco NC55-36X100G - IPoDWDM Modular Line Card
Type de device: expansion module
Form Factor: Module enfichable
Features: switching de layers 3, support RPL, support MPLS, support IPv6, support protocole VRRP (Virtual Route Redundancy Protocol), support Quality of Service (ECM), detection bidirectionnelle (BFD) ), support protocole LACP (LACP), support point de code DiffServ (DSCP), OSPF (Open Shortest Path First), iPXE, protocole de synchronisation network (NTP), Ethernet on MPLS (EoMPLS), VPN L3VPN ) support, Zero-touch provisioning (ZTP), system intermédiaire à intermédiaire (IS-IS)
performance: - Performances de transfert: 1.44 Mpps
Capacity: - IPv4 routes : 256000 - IPv6 routes : 64000
Data link protocol: 10 Gigabit Ethernet, 40 Gigabit Ethernet,100 Gigabit Ethernet
Throughput de transfert de data: 100Gbits/s
Data link protocol: Gigabit Ethernet
Type de câblage: Ethernet 10Based-T, Ethernet 100Based-TX, Ethernet 1000Based-T
Ports: - 36 x 100Gb Ethernet - QSFP28
Processor: 1 x Intel Xeon
MAC address table size: 750000 entries
Ram: 8 GB
Disque dur: 256 GB
Flash memory: 10 GB
Compliance standards: IEEE 802.1ae
Interfaces: - 6 x 40 Gigabit QSFP+
Compatibilité: Cisco NCS 5500
Power supply: 980 Watt
Expansion slots: 2 (total) / 2 (free)
system d'exploitation requis: Cisco IOS XR Software
