Network equipment reference

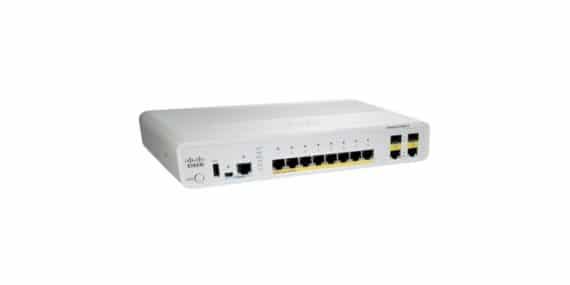

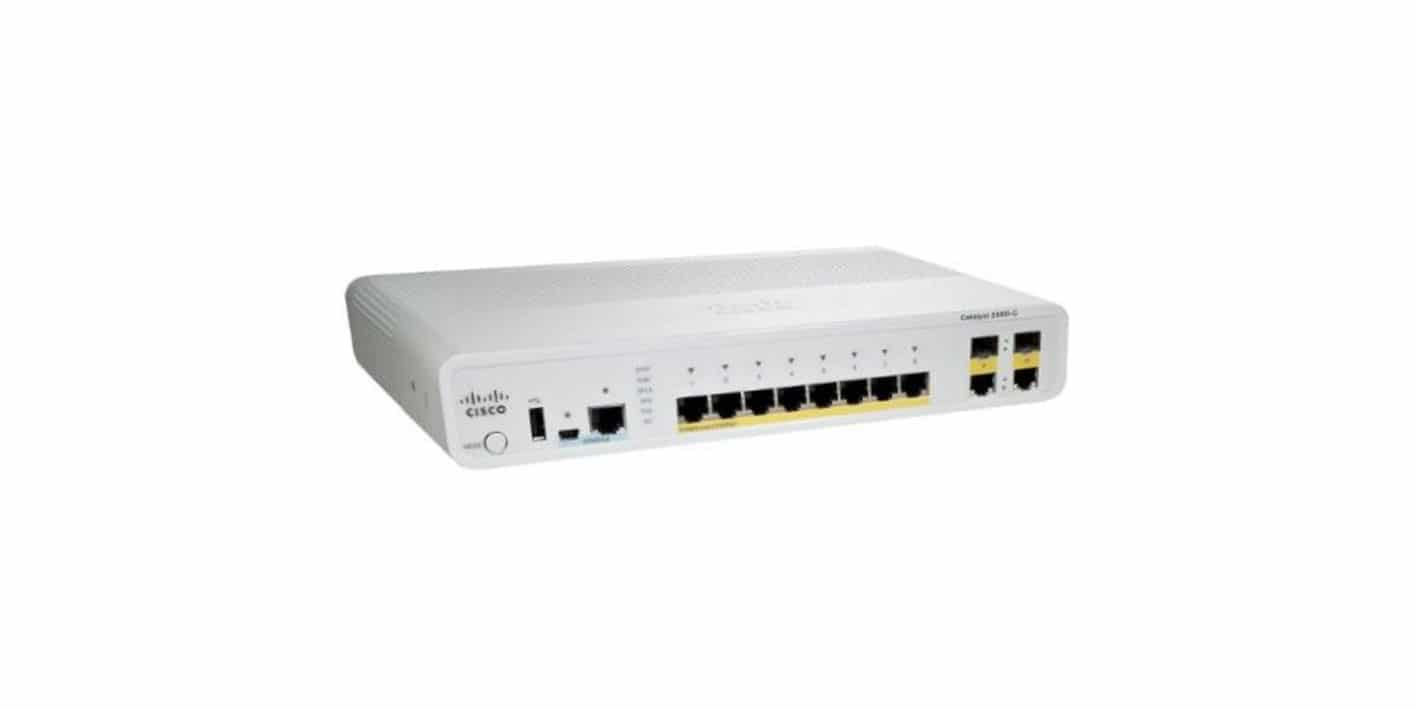

Cisco Catalyst Compact 2960C-8TC-S - L2 - 8 Ports

Reference : WS-C2960C-8TC-S

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Product: Cisco Catalyst Compact 2960C-8TC-S - L3 - 8 Ports
Features: Compatible DHCP, auto-negotiation, support de BOOTP, support of ARP, support network local (LAN) virtuel, auto-uplink (MDI/MDI-X auto), IGMP snooping, support de Syslog, support DiffServ, control storm de Broadcast, support of IPv6, Multicast Storm Control, Unicast Storm Control, support protocole STP (Spanning Tree Protocol), DHCP snooping, assistance Dynamic Trunking Protocol (DTP), assistance Port Aggregation Protocol (PAgP), assistance Trivial File Transfer Protocol (TFTP), assistance accesss Control List (ACL), Quality of Service (QDS), Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link detection (UDLD), without fans, relais DHCP, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN)
performance: - Performances de transfert: 10 Gbps - Performances de transfert : 3.8 Mpps
Capacity: VLANs : 255
MAC address table size: 32000 entries
Remote management protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP
Routing protocol: RIP-1, RIP-2
PoE: - Power Over Ethernet (PoE) : UPOE - Budget PoE : 630 W
Normes de conformité IEEE: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at
RAM: 128 MB
Flash Memory: 64 MB
Logiciel provided: Cisco IOS
Power supply: CA 120/230 V (50/60 Hz)
chassis type: 1U
