Network equipment reference

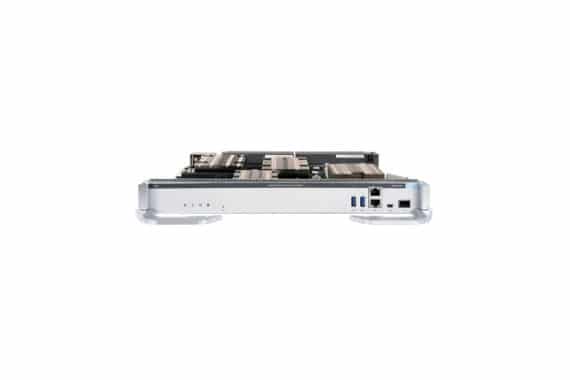

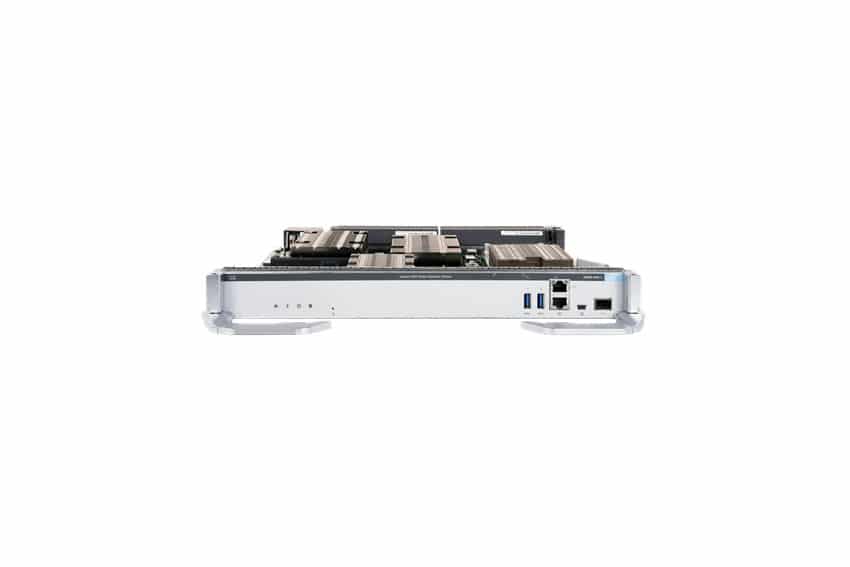

Cisco Catalyst C9600-SUP-1

Reference : C9600-SUP-1

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Features: support protocole STP (Spanning Tree Protocol), Quality of Service (QDS), support de PXE, Remote Switch Port Analyzer (RSPAN), Virtual Routing and Forwarding (VRF), Flexible NetFlow (FNF), Control plane protection (CoPP), Virtual extensible LAN (VXLAN), Location ID Separation Protocol (LISP), Cisco Discovery Protocol, Zero-touch provisioning (ZTP), démarrage sécurisé, Switched Port Analyzer (SPAN), Cisco StackWise Virtual, Security Group Tag (SGT) caching, Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), support PVLAN, Mode d'insertion and suppression Graceful (GIR), Network-Basedd Application Recognition (NBAR) 2, security de control d'accès au média (MACsec), signature d'image, module Cisco Trust Anchor
Routing protocol: OSPF, RIP, IS-IS, EIGRP, HSRP, VRRP, PIM-SM, PIM-SSM, MSDP, Policy-basedd routing (PBR), MPLS, STP
performance: Switching capacity per logement: 2.4 Tbps Switching capacity: 9.6 Tbps Rate de transfert: 3 Bbps
Interface (s): - 1 x console - mini-USB - 1 x console - RJ-45 - 2 x USB 3.0 - 1 x 1000Based-T (management) - RJ-45 - 1 x management - SFP+
Remote management protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, NETCONF, RESTCONF, gRPC, IPv6, YANG
Processor: 2 GHz
RAM: 16 GB
Flash memory: 16 GB
Normes de conformité IEEE: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba, IEEE 802.3by
