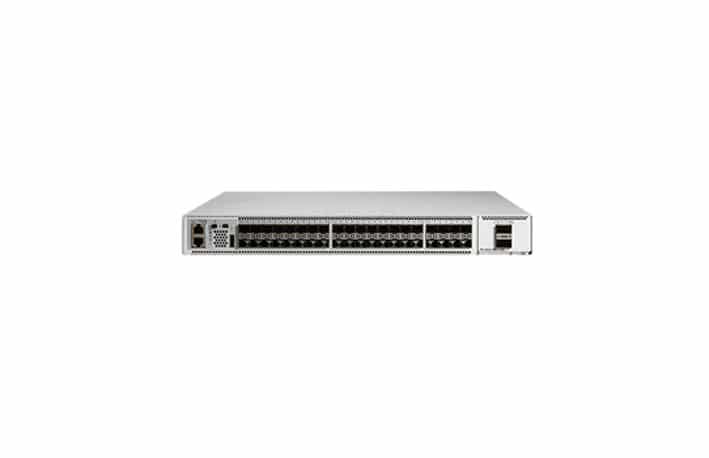

Cisco Catalyst C9500-24Q-E - L3 - 24 Ports

Reference : C9500-24Q-E

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Product: Cisco Catalyst C9500-24Q-E- L3 - 24 Ports
Features: IGMP snooping, support de Syslog, support of IPv6, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Weighted Random Early detection (WRED), support protocole VRRP (Virtual Route Redundancy Protocol), assistance accesss Control List (ACL), Quality of Service (QDS), snooping MLD, support LLDP, Remote Switch Port Analyzer (RSPAN), NetFlow, Flexible NetFlow (FNF), support de MACsec, CIC integrated, Location ID Separation Protocol (LISP), Open Shortest Path First (OSPF), VLAN Double Tagging (Q-in-Q), Zero-touch provisioning (ZTP), Switched Port Analyzer (SPAN), Cisco StackWise Virtual
performance: - Switching capacity (full-duplex): 960 Gbps - Rate de transfert : 1440 Mpps
Capacity: - Entries de Routing table: 64000 - routes IPv4 indirects : 64000 - routes IPv4 hosts : 32000 - routes IPv6 indirects : 32000 - routes IPv6 hosts : 16000 - scale de multicast : 48000 - scale ACL QoS : 18000 - scale ACL de security : 18000 - Entries FNF : 512000 - VLAN : 4000 - Interfaces virtuelles switched (SVI): 4000
Protocole de routage: OSPF, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, PIM-SSM, RIPng, MPLS
Remote management protocol: SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, TFTP, NETCONF, RESTCONF
Flash memory: 16 GB
RAM: 16 GB - DIMM 288-pin - DDR4 SDRAM
Ports: - 24 x 40Gbit QSFP - 2 x USB 3.0
Compliance standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae
Power supply: CA 120/230 V (50/60 Hz)
chassis type: Rack-mountable 1U
