Network equipment reference

Cisco Catalyst C9200-48P-E

Reference : C9200-48P-E

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

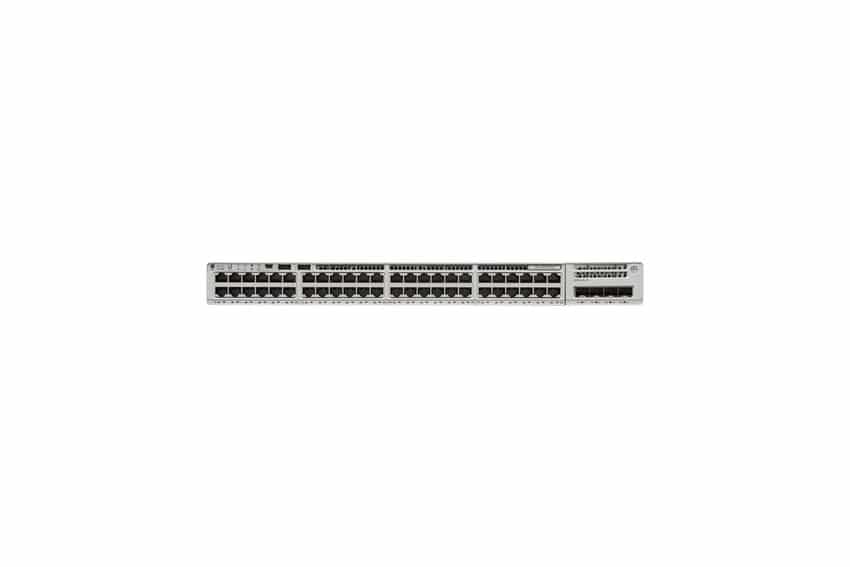

Product: Cisco Catalyst C9200-48P-E
Features: Quality of Service (QDS), Remote Switch Port Analyzer (RSPAN), Flexible NetFlow (FNF), support de MACsec, Control plane protection (CoPP), Sampled NetFlow, Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), First Hop Security (FHS), support DNA
Routing protocol: OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, Policy-basedd routing (PBR), RIPng, MSTP
Capacity: Adresses MAC: 32000 Routes IPv4: 14000 routes IPv4 indirects: 4000 Routes directes IPv4: 10000 Entries de Routing table IPv4: 4000 Entries de Routing table IPv6: 2000 scale de multicast: 1000 Entries d'scale ACL: 16000 size de tampon de packets: 6 MB Flexible NetFlow entries: 16000 ID de VLAN: 1000
performance: Bande passante without fil: jusqu'à 48 Gbps switching de bande passante: 176 Gbps Rate de transfert: 261.9 Mpps networks virtuels: 4
MAC address table size: 32000 entries
Ports: -48 x 1000Based-T RJ-45 PoE+ - 30 W - 4 x 10GBased-X SFP+
Power Over Ethernet (PoE): PoE+
Expansion slots: 1 (total) / 1 (free) x Logement for extension
Remote management protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
RAM: 4 GB
Flash memory: 4 GB
Normes de conformité IEEE: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz
Logiciel(s) inclus: Cisco DNA Essentials, 48 emplacements, durée de licence de 3 ans
system d'exploitation requis: Cisco IOS XE 16.9.2 or supérieur
Power supply: device d'power supply: Power supply electrical interne - enfichable hot Number installed : 2 (maximum) Power supply redondante : En option Power supply provided : 125 Watt voltage requise: CA 120/230 V (50 - 60 Hz)
chassis type: Rack-mountable
