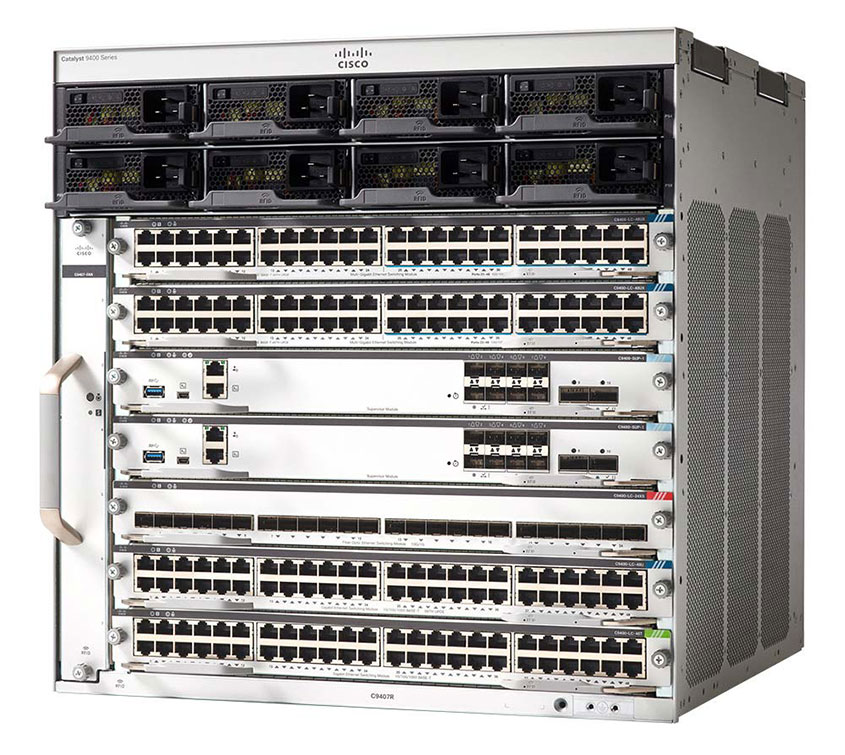

Cisco Catalyst 9400 7-Slot Chassis
Reference : Cisco Catalyst 9400 7 Slot Chassis
OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.
Request a module verificationTechnical specifications
- Product
- Cisco Catalyst 9400 7 Slots chassis
- performance
- - Switching capacity per logement : 480 Gbps
- Protocole network
- - Routes IPv4: 256000 - Routes IPv6: 128000 - Entries NetFlow: 2500000 - Routes IPv4 (multicast): 128000 - Routes IPv6 (multicast): 128000 - Interfaces virtuelles (VLAN): 4000 - Domaines: 16000 - Entries ACL: 64000
- Protocole de routage
- IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, GRE, MSDP, MLDv2, MLD, MPLS, PIM-SMv6, PIM-DMv6
- Remote management protocol
- RMON, SMON
- MAC address table size
- 128000 entries
- RAM
- 2 GB
- Ports
- - 96 ports Slots
- PoE
- - PoE per Slots : 2880W
- Expansion slots
- - 8 (total) / 7 (free) x Logement for extension
- Included software
- Cisco IOS-XE
- Compliance standards
- IEEE 802.1x, IEEE 802.1ae
- Power supply
- 3200W AC, 2100W AC
- chassis type
- Rack-mountable 13U
