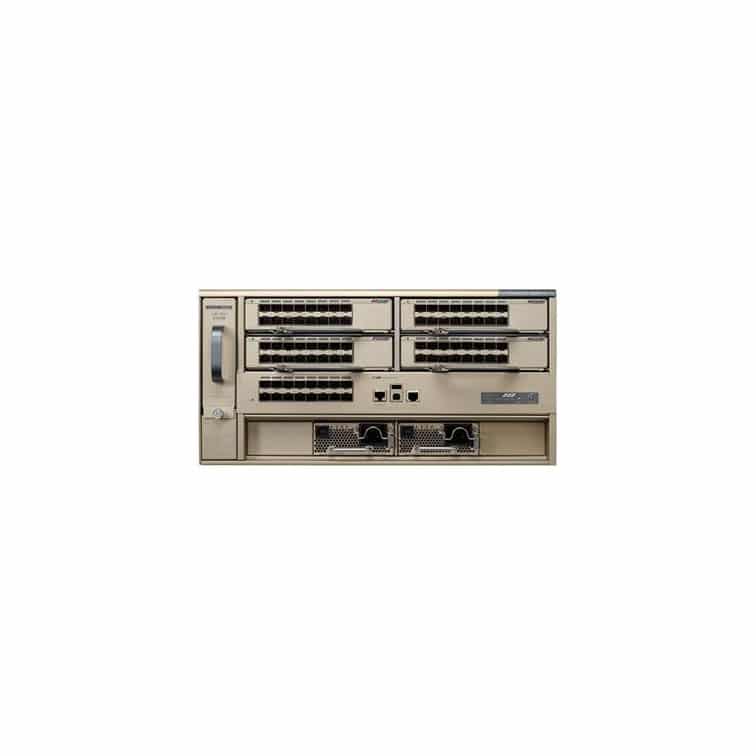

Cisco Catalyst 6880-X-Chassis

Reference : Cisco Catalyst 6880-X-Chassis

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Product: Cisco Catalyst 6880-X-chassis
performance: - Switching capacity per logement: 220 Gbps - Switching capacity (full-duplex): jusqu'à 2 Tbps - Routing IPv4: jusqu'à 300 Mpps - Routing IPv6: jusqu'à 150 Mpps - Pont layers 2 (Layer-2 bridging): jusqu'à 180 Mpps
Protocole network: - Routes IPv4: 256000 - Routes IPv6: 128000 - Entries NetFlow: 2500000 - Routes IPv4 (multicast): 128000 - Routes IPv6 (multicast): 128000 - Interfaces virtuelles (VLAN): 4000 - Domaines: 16000 - Entries ACL: 64000
Protocole de routage: IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, GRE, MSDP, MLDv2, MLD, MPLS, PIM-SMv6, PIM-DMv6
Remote management protocol: RMON, SMON
MAC address table size: 128000 entries
RAM: 2 GB
Ports: - 16 x 10GBased-X SFP+ - 1 x management (LAN) RJ-45 - 1 x console RJ-45 - 1 x USB Type A - 1 x USB Type B
Expansion slots: - 4 (total) / 4 (free) x Logement for extension
Included software: Cisco IOS 15.2(2)SY
Compliance standards: IEEE 802.1x, IEEE 802.1ae
Power supply: CA 120/230 V (50/60 Hz)
chassis type: Rack-mountable 5U
