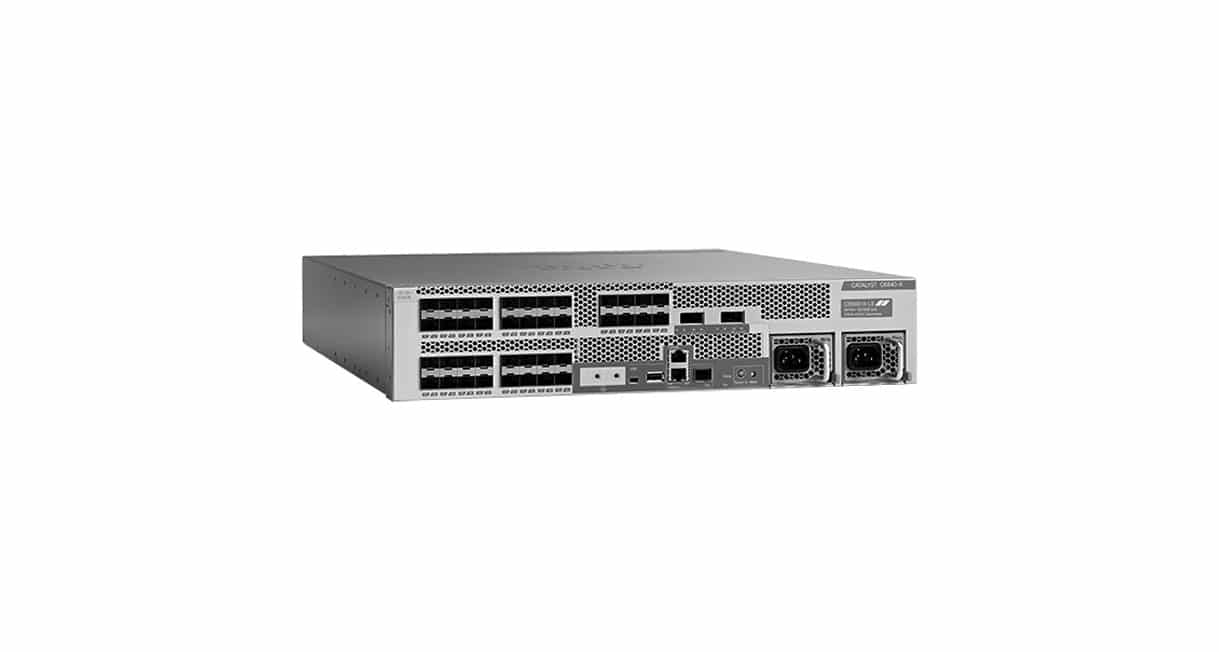

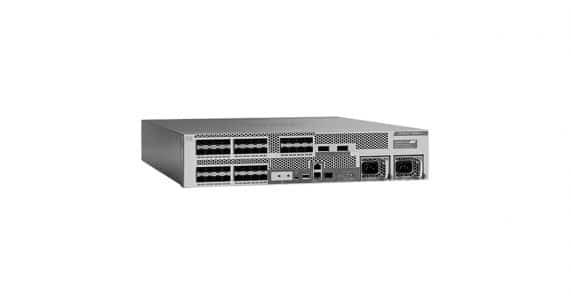

Cisco Catalyst 6840-X Chassis

Reference : Cisco Catalyst 6840-X Chassis

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Product: Cisco Catalyst 6840-X chassis
performance: - Performances de transfert: jusqu'à 180 Mpps - Switching capacity (full-duplex): jusqu'à 240 Gbps - Routing IPv4: jusqu'à 180 Mpps - Routing IPv6: jusqu'à 90 Mpps - Pont layers 2 (Layer-2 bridging): jusqu'à 180 Mpps
Protocole network: - IPv4: 256000 - Routes IPv6: 128000 - Entries NetFlow: 1500000 - Routes IPv4 (multicast): 128000 - Routes IPv6 (multicast): 64000 - Interfaces virtuelles (VLAN): 4094 - Domaines: 16000 - Entries ACL: 64000 - Interfaces logiques: 128000
Protocole de routage: IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, GRE, MSDP, MLDv2, MLD, MPLS, PIM-SMv6, PIM-DMv6
Remote management protocol: RMON, SMON
MAC address table size: 128000 entries
RAM: 4 GB
Ports: - 40 x 10GBased-X SFP+ - 2 x 40Gbit WAN QSFP+ - 1 x 1000Based-T (management) - 1 x management SFP - 1 x serial - RJ-45 - 2 x USB
Included software: Cisco IOS 15.2(2)SY
Compliance standards: IEEE 802.1x, IEEE 802.1ae
Power supply: CA 120/230 V (50/60 Hz)
chassis type: Rack-mountable 2U
