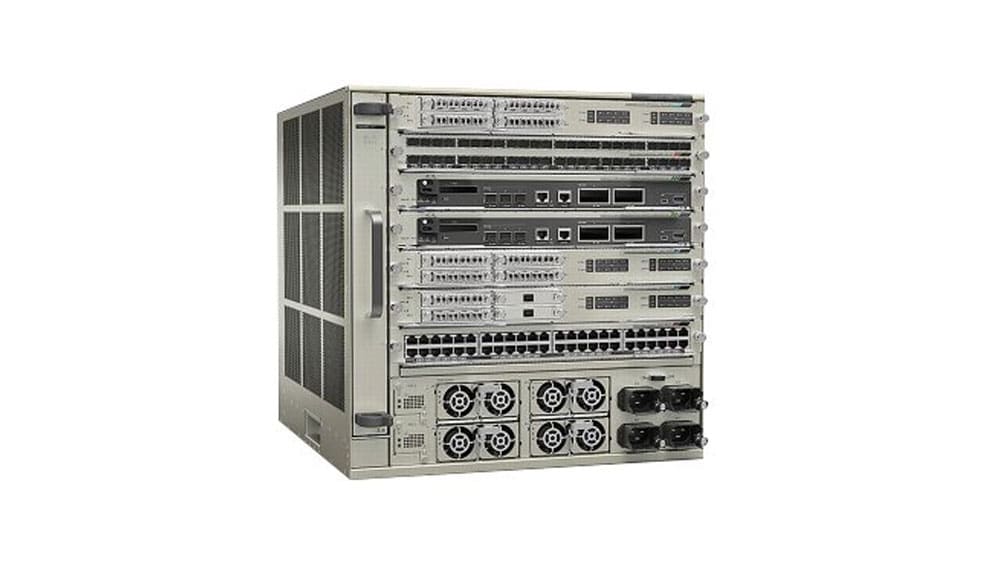

Cisco Catalyst 6807-XL
Reference : WS-C6807-XL
OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.
Request a module verificationTechnical specifications
- Product
- Cisco Catalyst 6807-XL
- performance
- - Performances de transfert: jusqu'à 880 Mpps - Routing IPv4 : 780 Mpps - Routing IPv6 (Multicast): 390 Mpps - Pont layers 2 (Layer-2 bridging): jusqu'à 780 Mpps
- Protocole network
- - Entries NetFlow: 512000 - Routes IPv4 (multicast): 128000 - Routes IPv6 (multicast): 128000 - Interfaces virtuelles (VLAN): 4000 - Entries ACL: 64000 - Interfaces logiques: 128000
- Protocole de routage
- IGMPv3, MLDv2, MPLS
- Remote management protocol
- RMON, SMON
- MAC address table size
- 128000 entries
- RAM
- 4 GB
- Ports
- - 8 x 10GBased-X SFP+ - 2 x 40Gbit WAN QSFP+ - 1 x 1000Based-T (management) - 1 x management SFP - 1 x serial - RJ-45 - 2 x USB
- Module installedd
- 1 installed / 7 (maximum)
- Included software
- Cisco IOS IP Services
- Compliance standards
- IEEE 802.1x, IEEE 802.1ae
- Power supply
- CA 120/230 V (50/60 Hz)
- chassis type
- Rack-mountable 2U
