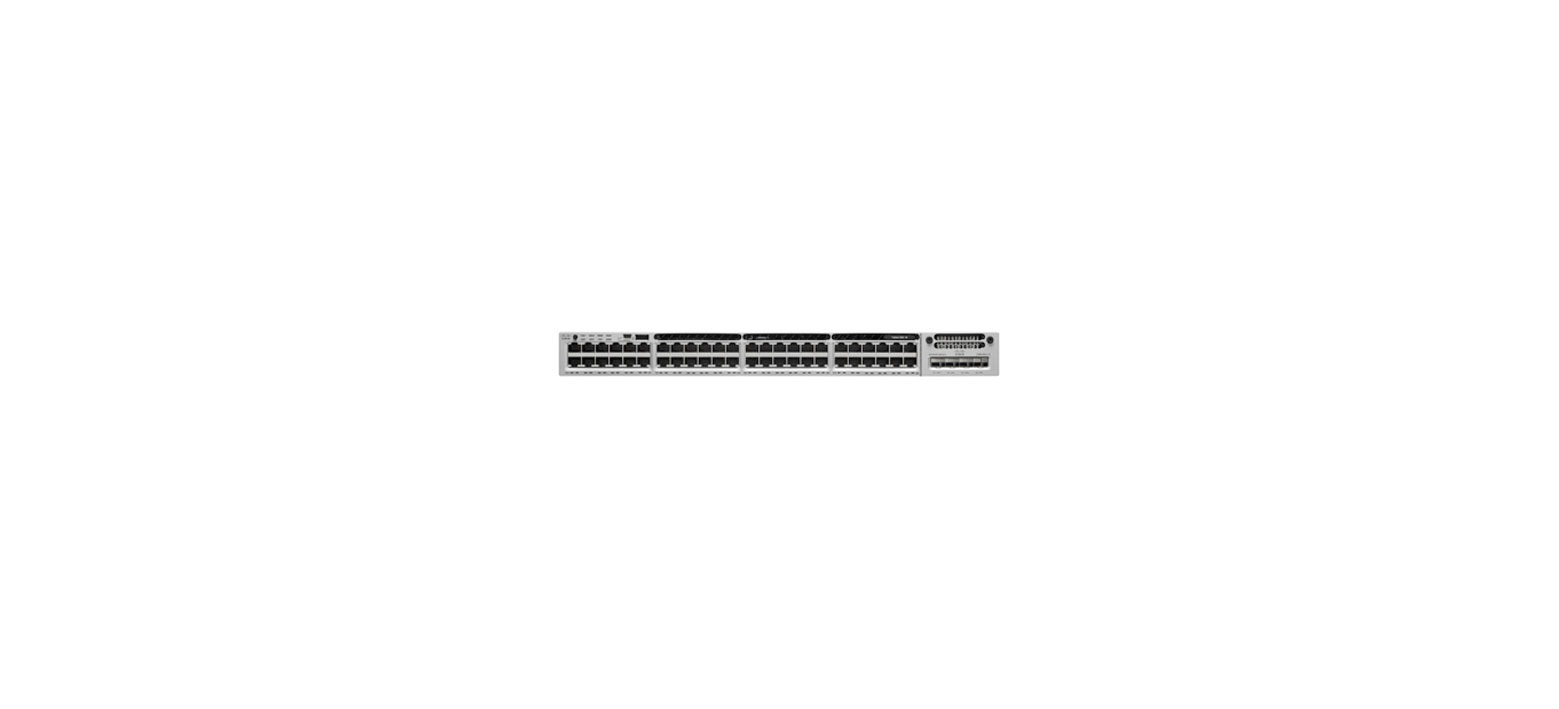

Cisco Catalyst 3850-48T-E - L3 - 48 Ports

Reference : WS-C3850-48T-E

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Product: Cisco Catalyst 3850-48T-E - L3 - 48 Ports
Features: Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, accesss Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy Efficient Ethernet, Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF)
Capacity: - Routes IPv4 : 24000 - Interfaces virtuelles switched (SVI) : 1000 - Entries NetFlow : 48000
performance: - Switching capacity: 176 Gbps - Bande passante d'empilage : 480 Gbps
MAC address table size: 32000 entries
Remote management protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP
Routing protocol: BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, RIPng
Ports: - 48 x 10/100/1000 - 1 x 1000Based-T RJ-45 - 1 x console - RJ-45 management - 2 x USB
Normes de conformité IEEE: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at
Logiciel provided: Cisco IOS
Power supply: CA 120/230 V (50/60 Hz)
Expansion slots: 1 (total) / 1 (free) x module d'empilage
chassis type: Rack-mountable 1U
