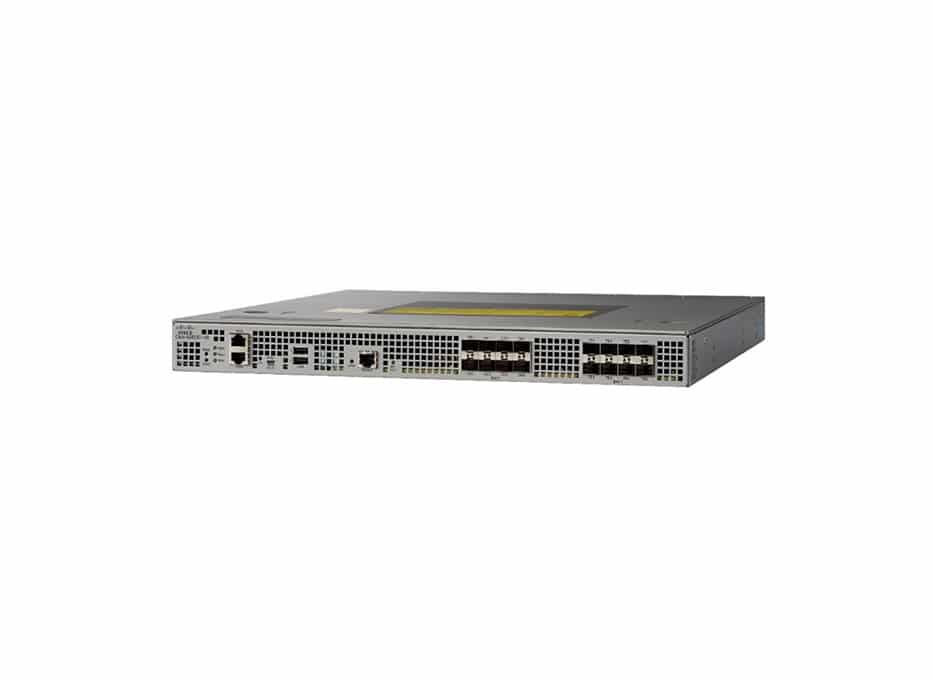

Cisco ASR 1001-HX Chassis

Reference : ASR1001-HX

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Product: Cisco ASR 1001-HX chassis
Caractéristique: NAT support, Deep Packet Inspection (DPI), accesss Control List (ACL) support, Quality of Service (QoS), front to back airflow, NetFlow, DiffServ Code Point (DSCP) support, In-Service Software Upgrade (ISSU)
performance: - Bande passanteh: 60 Gbps - Throughput : up to 20 Gbps - IPSec tunnels: 8000
Standard: CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN55022, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, EN55022 Class A, CISPR 22, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, VCCI Class A, AS/NZS CISPR 22, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300386
Ports: - 8 x 1000Based-X - SFP (mini-GBIC) - 8 x 10GBased-X - SFP - Management: 1 x 10Based-T/100Based-TX/1000Based-T - RJ-45 - Management: 1 x console - RJ-45 - Management: 1 x auxiliary - RJ-45 - USB: 2 x 4 pin USB Type A - USB: 1 x console
RAM: 8 GB (installedd) / 16 GB (maximum)
Expansion slots: 2 (total) / 2 ( installedd)
Power supply: 500 Watt
Included software: IOS XE
chassis type: Rack-mountable 1U
