Network equipment reference

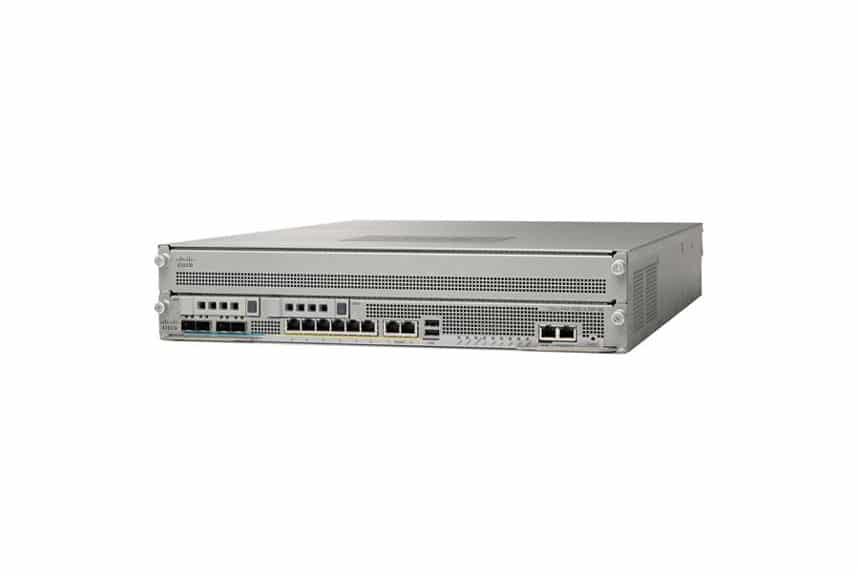

Cisco ASA 5585-X Firewall Edition SSP-40 bundle

Reference : ASA-SSP-40-K8=

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Type: Security appliance
Type de liaison de donnée: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Features: Firewall protection, Load balancing, VLAN support, VPN support
Protocole de transport: IPSec
Ports: - RJ-45 X 1, Management ( 1000Bas-T) X 1 - USB 2.0 X 1
Standards compliance: Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN300-386, EN50082-1, EN55022 Class A, EN55024, FCC CFR47 Part 15, GB 4943, ICES-003 Class A, IEC 60950-1, UL 60950-1, VCCI Class A ITE
Algorithme de cryptage: AES, 3DES
Interfaces: - RJ-45 X 6 ( 1000Based-T) - 4 X SFP+
performance: - Concurrent sessions : 4000000 - Sessions IPSec VPN : 10000 - Sessions SSL VPN : 2 - Interfaces (VLANs) : 1024 - Number of connection : 200000 connections per second - Firewall + intrusion prevention throughput : 5 Gbps - Throughput Firewall : 20 Gbps - VPN throughput : 3 Gbps
Flash memory: 2 GB
RAM: 12 GB
chassis: - Modules installedd : 1 - Modules supportés : 2
Power supply: - Power supply requise : 50/60 Hz - installed : 2, Enfichable hot - Voltage : AC 120/230 V
