Network equipment reference

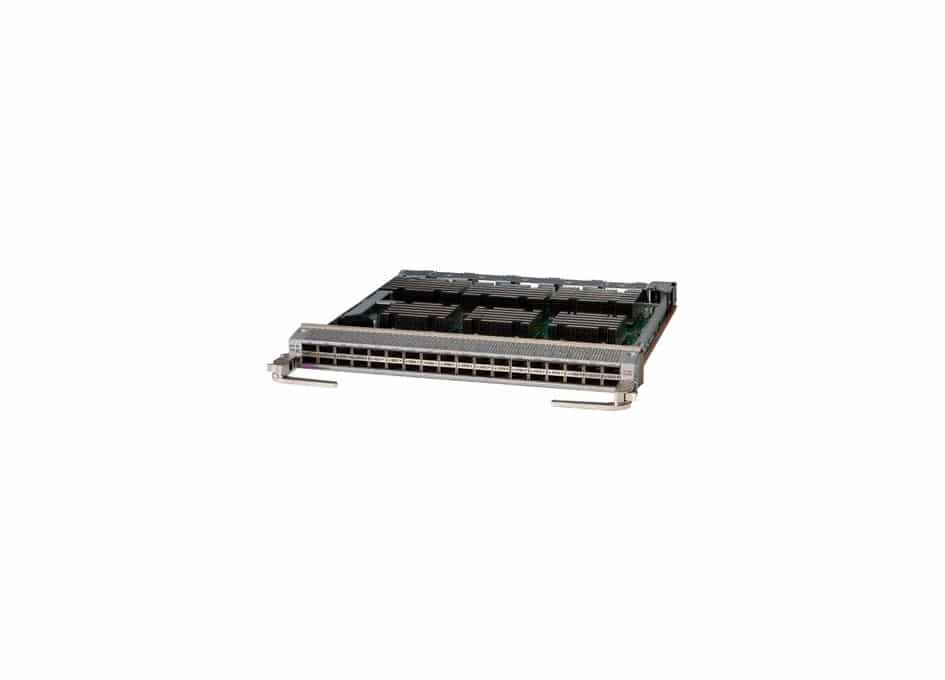

Cisco Nexus N9K-X9636C-R
Reference : N9K-X9636C-R
OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.
Request a module verificationTechnical specifications
- Type d'appareil
- expansion module
- Features
- support protocole HSRP (Hot Standby Router Protocol), support points de terminaison tunnel VXLAN (VTEP)
- Capacity
- - Entries d'host IP: 104000 - Entries d'adresse MAC: 40000 - Routes de multicast: 32000 - VLAN pris en charge: 4096 - Instances de Routing and transfert virtuel (VRF): 2000 per VLAN, - Instances d'instantané rapide: 507 - Instances de MST: 64
- performance
- - Bande passante: 6.4 Tbps - Bande passante: 5.95 Bpps
- MAC address table size
- 750000 entries
- Data link protocol
- 100 Gigabit Ethernet
- CPU
- 2.4 Ghz
- RAM
- 16 Gb
- Flash memory
- 32 GB
- Ports
- - 32 x 100Gb - QSFP28
- Compatibilité
- Cisco Nexus 9504, 9504, 9508 and 9508, 9516
- Power supply
- - Consommation electrical : 1050 Watt
- Compatibilité
- - Module Cisco Fabric Module plateforme Cisco Nexus 9500
