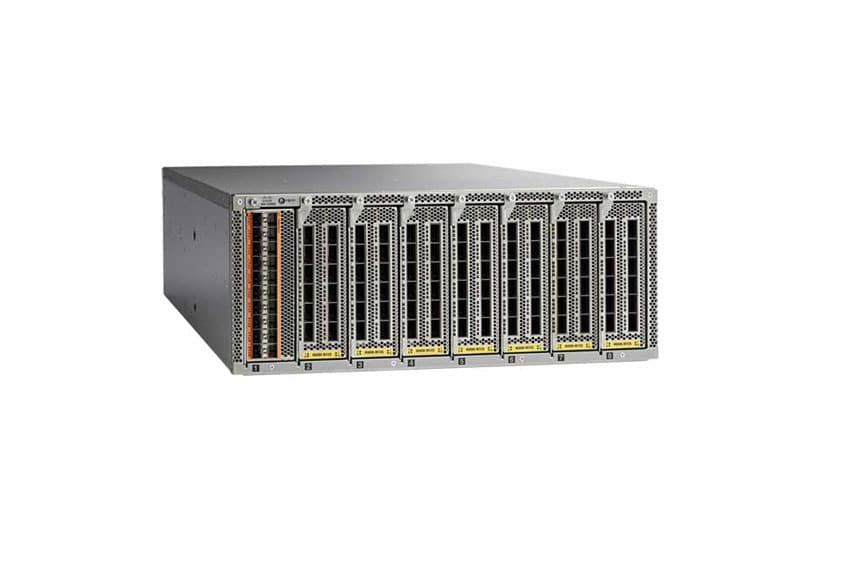

Cisco Nexus 5696Q Chassis- L3 - 24 Ports

Reference : Cisco Nexus 5696Q

OPTINOC preserves this reference for technical research. The equipment is not offered for sale, and an optical-module association is displayed only when it is supported by an official manufacturer source reviewed by our team.

Request a module verification

Technical specifications

Product: Cisco Nexus 5696Q - L3 -chassis
performance: - Switching capacity : 7.68 Tbps
Capacity: - Entries ARP: 256000 - Interfaces virtuelles (VLAN): 4096 - Entries ACL: 4000 - Instances Multiple Spanning Tree Protocol: 64 - Entries de table host (IPv4): 32000 - Entries de table host (IPv6): 8000 - Entries multicast (IPv4): 8000 - Entries d'observation IGMP: 8000 - Entries VRF (Routing and transfert virtuel): 4000 - Voies ECMP (Equal-Cost Multipathing): 64
Protocole de gestion à distance :: SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Routing protocol: IS-IS, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, OSPFv2, PIM-SM, EIGRP for IPv6, OSPF for IPv6, Static routing IPv4, Static routing IPv6, ECMP, Policy-basedd routing (PBR), Bidirectional Forwarding detection (BFD), BGP for IPv6
Standards compliance: IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP)
Included software: Cisco NX-OS
Expansion slots: 0(total) / 0 (free) x expansion Slots
Power supply: CA 120/230 V (50/60 Hz)
chassis type: Rack-mountable - 2U
